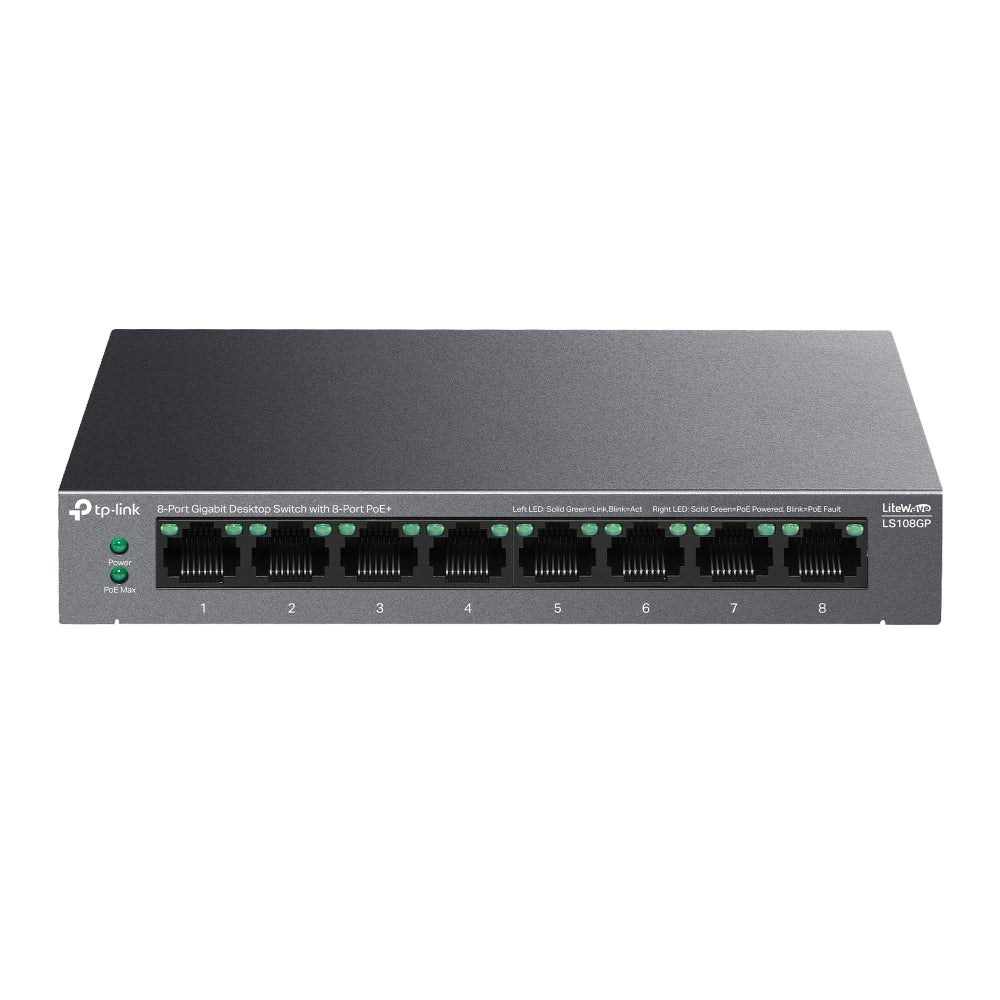

TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+ Unmanaged

TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+ Unmanaged

Part no.LS108GP

£41.66ex VAT£49.99 inc VAT
£0.00 £41.66ex VAT£49.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Specifications

Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Cable types supportedCat3, Cat4, Cat5, Cat5e
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Data transmission
MAC address table4000 entries
Switching capacity16 Gbit/s
Forwarding rate11.9 Mpps
Jumbo frames16000
Design
Product colourBlack
LED indicatorsYes
Power
Power sourceDC/PoE
Power supply includedYes
AC input voltage220 V
AC input frequency50 Hz
DC input voltage53.5 V
Input current1.31 A
Power consumption (max)71.61 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget62 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation243.47 BTU/h
Weight & dimensions
Width158 mm
Depth99 mm
Height25 mm
Certificates
CertificationCE, FCC, RoHS

In the box

  • User guide: Yes
