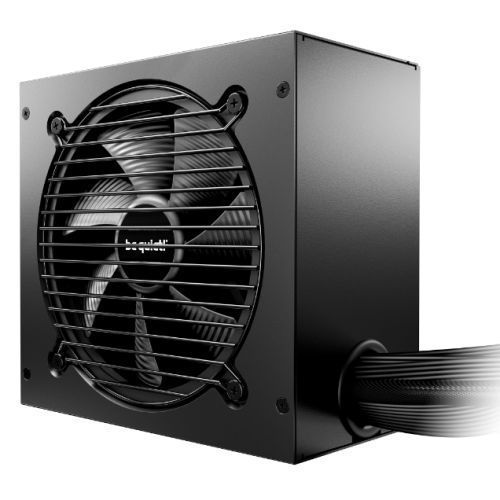

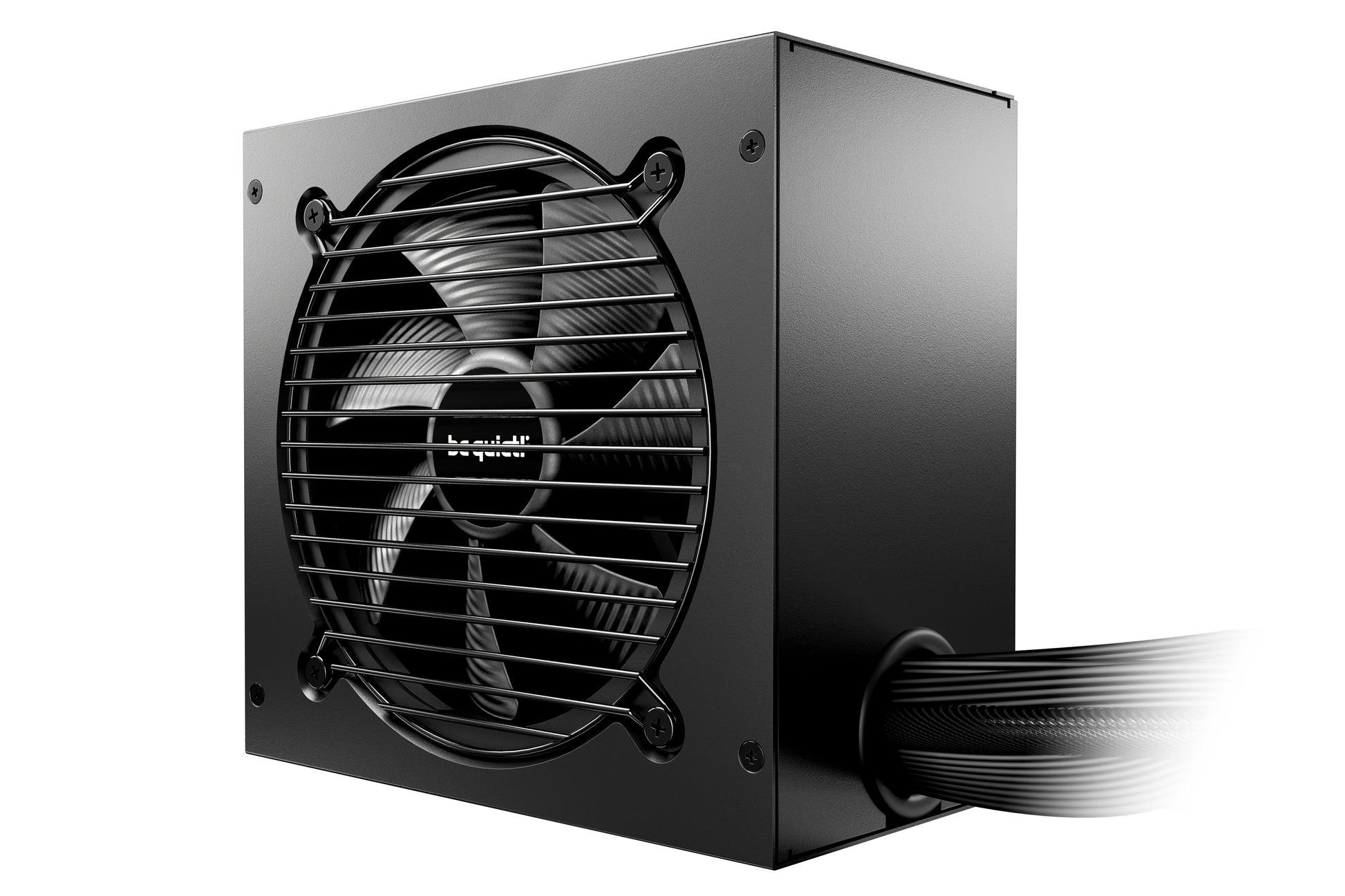

Be Quiet! 1000W Pure Power 12 PSU, Fully Wired, Rifle Bearing Fan, 80+ Gold, ATX 3.1, PCIe 5.1

Be Quiet! 1000W Pure Power 12 PSU, Fully Wired, Rifle Bearing Fan, 80+ Gold, ATX 3.1, PCIe 5.1

BEQUIET
View full details



Exceptional quiet, superior features


Pure Power 12 1000W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.

  • 80 PLUS® Gold efficiency (up to 92.9%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent 120mm be quiet! fan
  • Advanced stability and voltage regulation thanks to LLC technology
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2x6 600W and 3 PCIe 6+2 connectors for overclocked high-end GPUs
  • 10-year manufacturer’s warranty





80 PLUS® Gold Certified

Very high operating efficiency
Pure Power 12 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.9%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 1000W is always the correct choice for quiet systems and gaming PCs!






Future-Proof Your System

Fulfills all ATX 3.1 specifications
Pure Power 12 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.






The New Standard Of Power

For massive transient loads
Pure Power 12 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 12 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.






Exceptionally Silent Operation

Achieved by a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.






High-Class Technologies

Rock-solid stability
With its LLC topology Pure Power 12 1000W provides best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs.

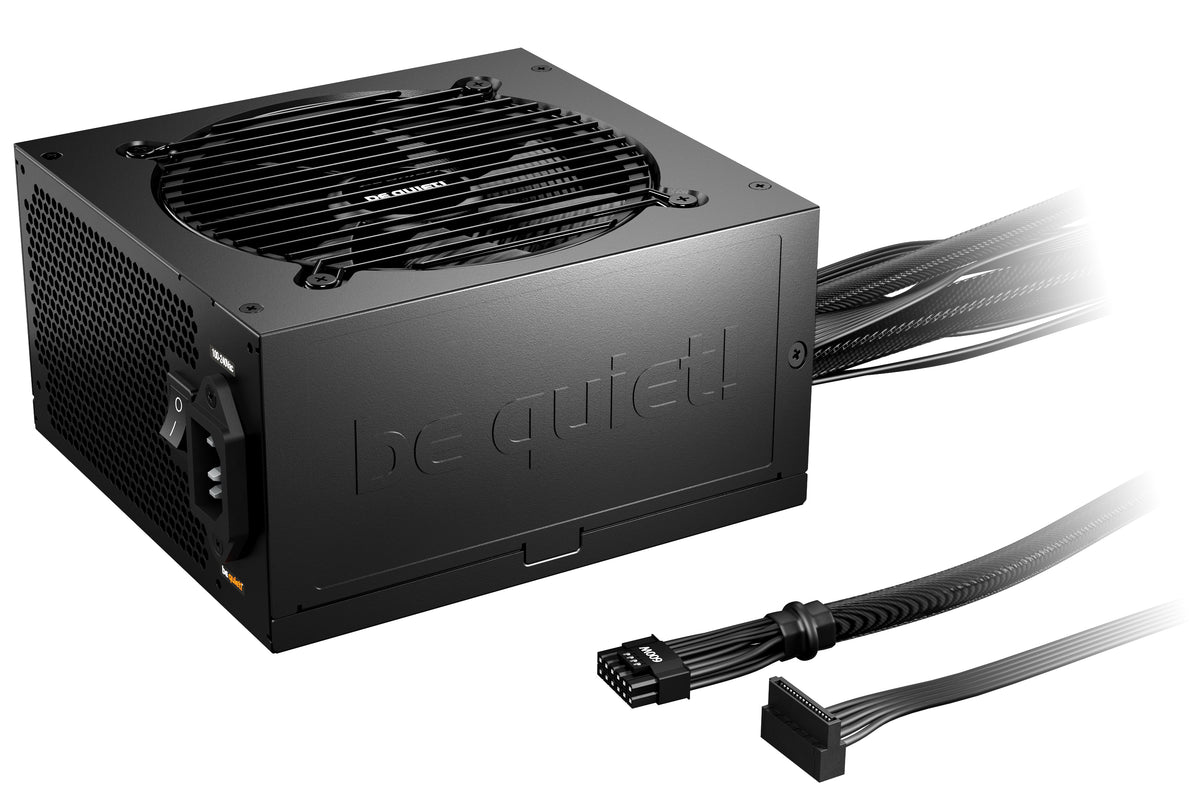

High-Quality Cables

For a tidy system
Pure Power 12 1000W is certainly an eye-catcher. Motherboard and 12V-2x6 cables are finished with high quality black sleeves. The remaining premium black flat cables simplify installation and keep the system tidy. This results in increased airflow and improved cooling.




Description

Specification

  • Form Factor: ATX
  • Series: Be Quiet! Pure Power 12
  • Wattage: 1000 W
  • Modular: Fully Wired
  • Compatibility: ATX 3.1
    PCIe 5.1
    EPS 12V v2.92
  • #Hide#Wattage Range: 1000 - 1250W

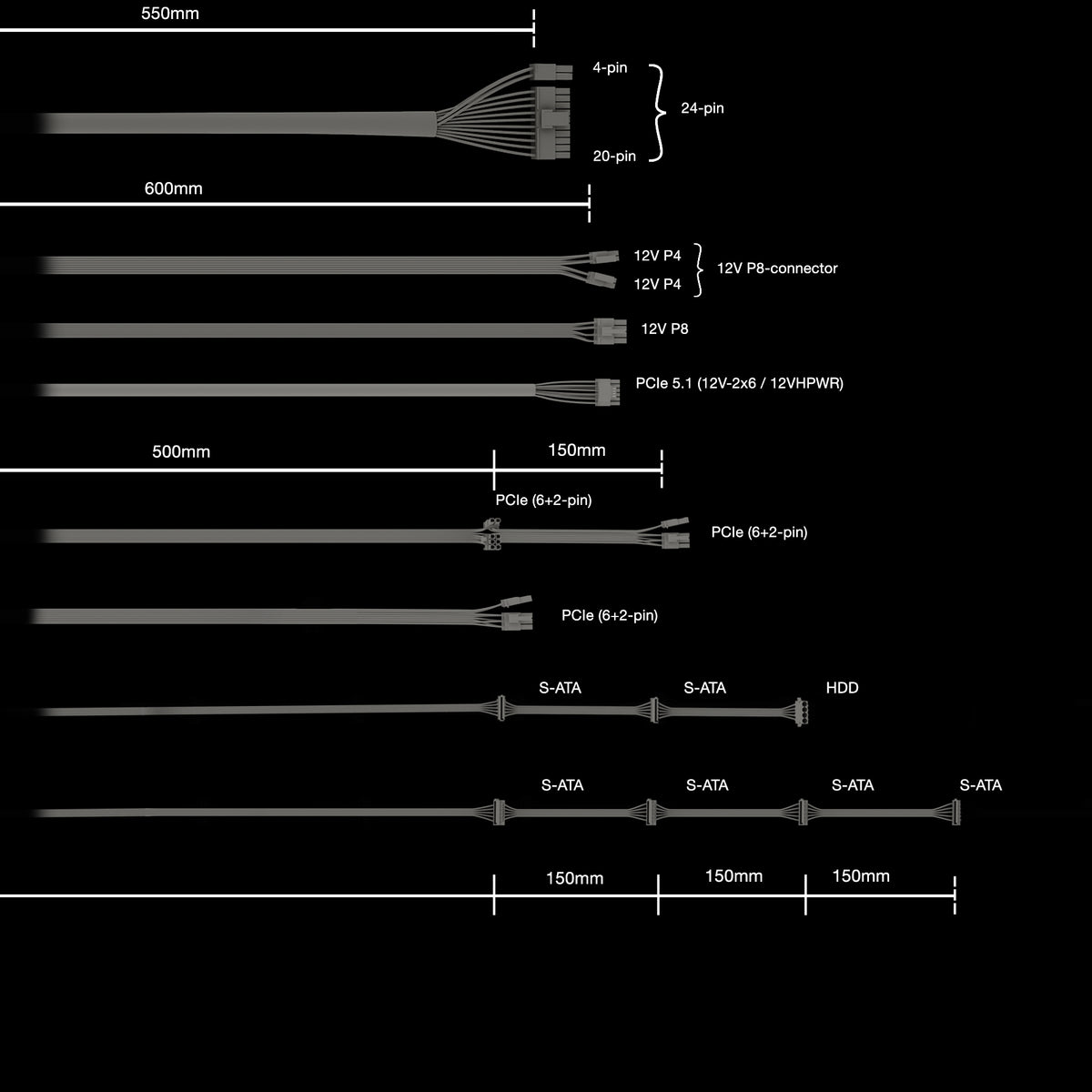

  • Connectors: 1 x ATX-Motherboard (20+4-pin)
    P4+4 (CPU)
    1 x P8 (CPU)
    1 x 12VHPWR cable
    3 x PCI-e 6+2-pin (GPU)
    6 x SATA
    1 x PATA
  • Rail Design: One massive high-performance 12V-rail
  • AC Input: AC 100-240 V
  • Fan Type: 120mm silence-optimized be quiet! fan
  • Fan Bearing: Rifle Bearing

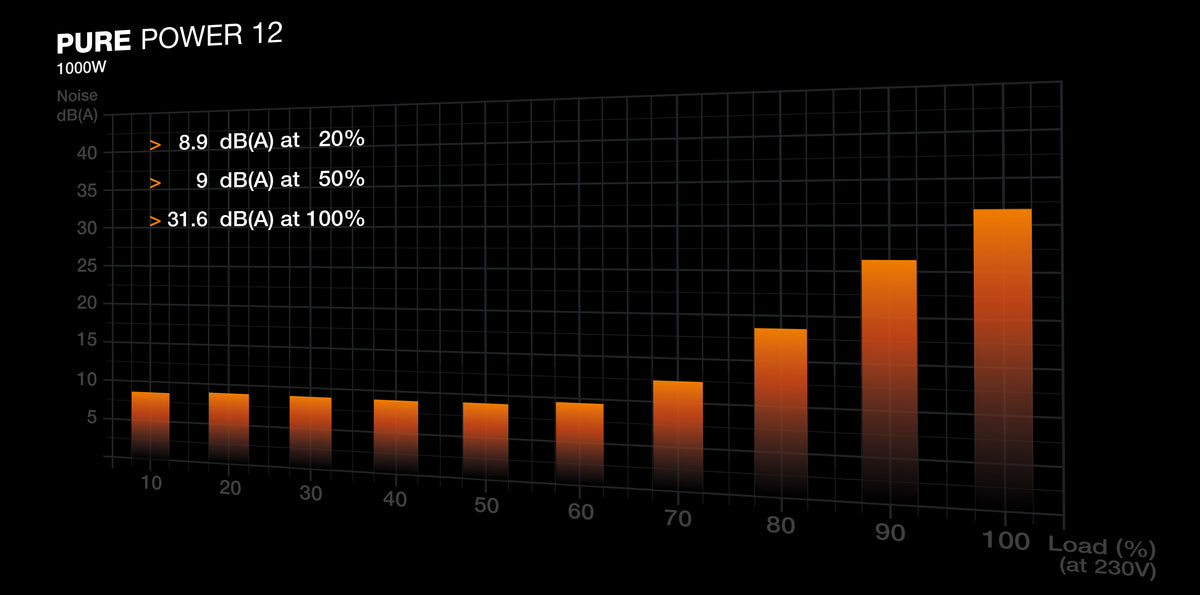

  • Noise: dB(A) at 10% load: 8.6
    dB(A) at 20% load: 8.9
    dB(A) at 50% load: 9
    dB(A) at 100% load: 31.6
  • Max Certification: Gold
  • Efficiency: "80+ Gold
    230V, 2% load: 66.3%
    230V, 10% load: 89.2%
    230V, 20% load: 92.7%
    230V, 50% load: 92.9%
    230V, 100% load: 90.6%"
  • MTBF: "100,000 hours"
  • Protection: Over temperature protection
    Over current protection
    Over power protection
    Short circuit protection
    Over Voltage protection
    Under Voltage protection
    Surge & Inrush Protection
  • Additional Features: See Overview

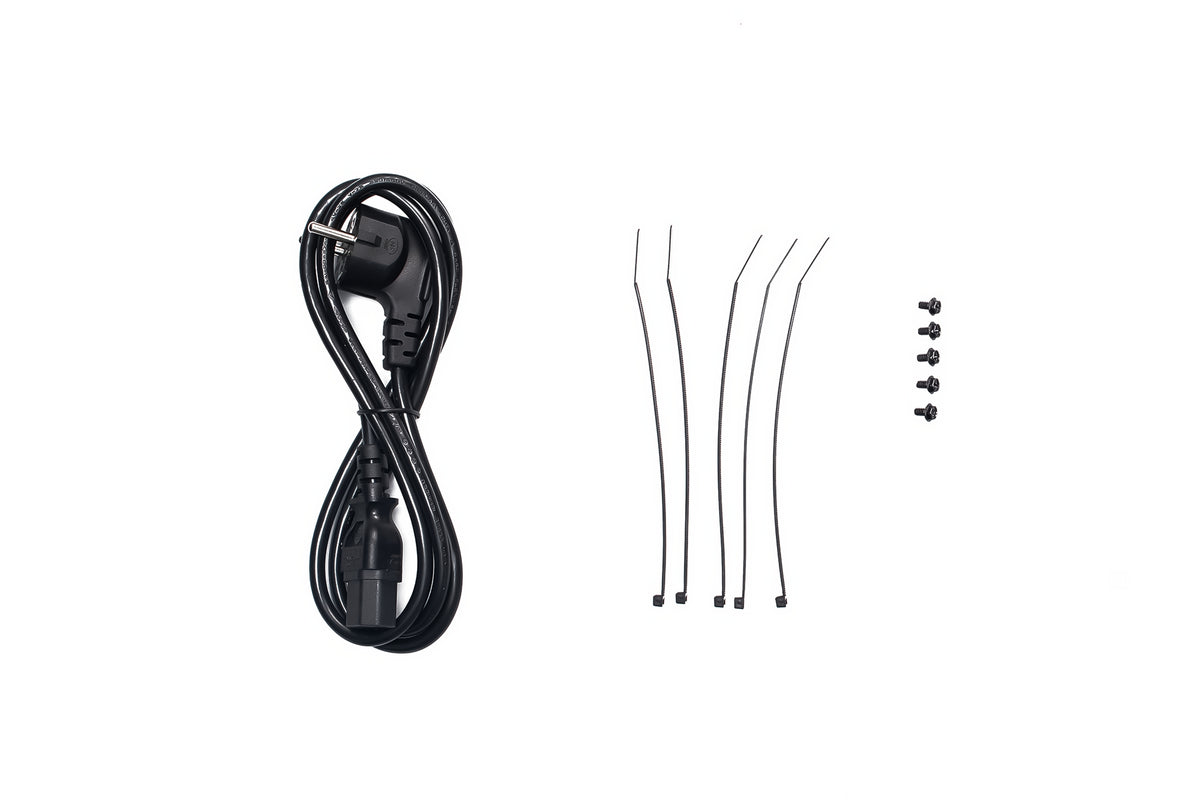

  • Package Contents: Power Supply
    Cables
    Screws
    Cable ties
    User manual
  • Weight/Dimensions: 2.8 kg
    (LxWxH) 160 x 86 x 150 mm
  • Package Weight: 3.3600 kg
  • Warranty: 10 Years
  • #Hide#ATX 3.1/3.0: ATX 3.1
