Overview Ultracompact desktops designed to maximise efficiency and productivity in small workspaces.
Specifications
Search the specifications
Processor Processor family Intel® Core™ i3 Processor manufacturer Intel Processor model i3-14100T Processor generation Intel® Core™ i3 (14th gen) Processor cores 4 Processor threads 8 Processor boost frequency 4.4 GHz Performance cores 4 Efficient cores 0 Performance-core Max Turbo Frequency 4.4 GHz Performance-core base frequency 2.7 GHz Processor cache 12 MB Processor cache type Smart Cache Number of processors installed 1 Processor base power 35 W Maximum turbo power 69 W
Neural processor unit (NPU) AI software frameworks supported by NPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Memory Internal memory 8 GB Maximum internal memory 64 GB Internal memory type DDR5-SDRAM Memory layout (slots x size) 1 x 8 GB Memory slots 2x SO-DIMM Non-ECC Yes Memory channels Single-channel Memory data transfer rate 4800 MT/s
Storage Total storage capacity 512 GB Optical drive type No Storage media SSD Number of storage drives installed 1 Total SSDs capacity 512 GB Number of SSDs installed 1 SSD capacity 512 GB SSD interface PCI Express 4.0 NVMe Yes SSD form factor M.2
Graphics Discrete graphics card No On-board graphics card Yes Discrete graphics card model Not available On-board graphics card model Intel UHD Graphics 730 On-board GPU manufacturer Intel On-board graphics card family Intel® UHD Graphics
Network Ethernet LAN Yes Wi-Fi Yes Ethernet LAN data rates 10,100,1000 Mbit/s Cabling technology 10/100/1000Base-T(X) LAN controller Intel WGI219LM Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) WLAN controller manufacturer Intel WLAN controller model Intel Wi-Fi 6E AX211 Antenna type 2x2 Antenna design Internal Bluetooth Yes

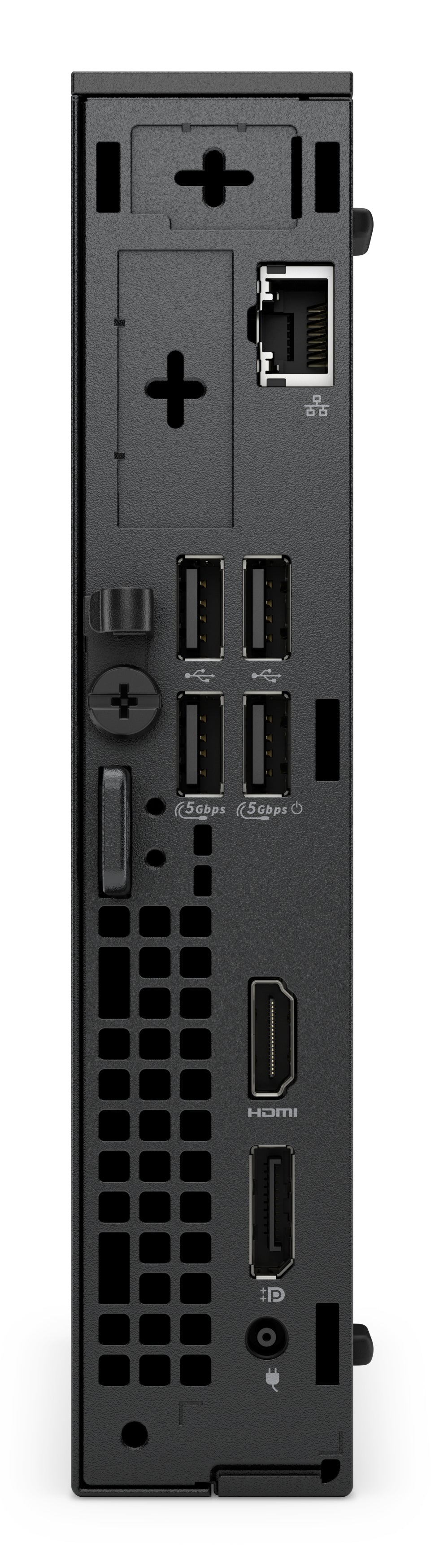

Ports & interfaces USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Thunderbolt 3 ports quantity 0 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4a Ethernet LAN (RJ-45) ports 1 Combo headphone/mic port Yes DC-in jack Yes Number of rear USB ports 4 Number of front USB ports 2 Number of front audio ports 1
Design Chassis type Micro PC Product colour Black Placement supported Horizontal/Vertical Cable lock slot Yes Cable lock slot type Kensington
Performance Product type Mini PC Market positioning Business Motherboard chipset Intel Q870 Audio chip Realtek ALC3204 Audio system High Definition Audio Trusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 2.0
Software Operating system installed Windows 11 Pro Operating system architecture 64-bit Trial software Activate Your Microsoft 365 For A 30 Day Trial
Power Power supply 90 W Power supply input voltage 100 - 240 V Power supply input frequency 50 / 60 Hz
Operational conditions Operating temperature (T-T) 10 - 35 °C Storage temperature (T-T) -40 - 65 °C Operating relative humidity (H-H) 20 - 80% Storage relative humidity (H-H) 5 - 95% Operating altitude -15.2 - 3048 m Non-operating altitude -15.2 - 10668 m Operating vibration 0.26 G Non-operating vibration 1.37 G Operating shock 40 G Non-operating shock 105 G
Sustainability Sustainability certificates ENERGY STAR, EPEAT Climate +, EPEAT Gold
Weight & dimensions Width 36 mm Depth 178 mm Height 182 mm Weight 1.16 kg
Carbon footprint Total carbon footprint (kg of CO2e) 77.6 Carbon emissions, manufacturing (kg of CO2e) 41.516 Carbon emissions, logistics (kg of CO2e) 2.1728 Carbon emissions, energy usage (kg of CO2e) 33.4456 Carbon emissions, end-of-life (kg of CO2e) 0.54 PAIA version GaBi version 1, 2024
Display
In the box
Mouse included on selected markets: Dell Optical Mouse-MS116 - Black Keyboard included on selected markets: Dell Wired Keyboard - KB216 - UK (QWERTY) - Black
