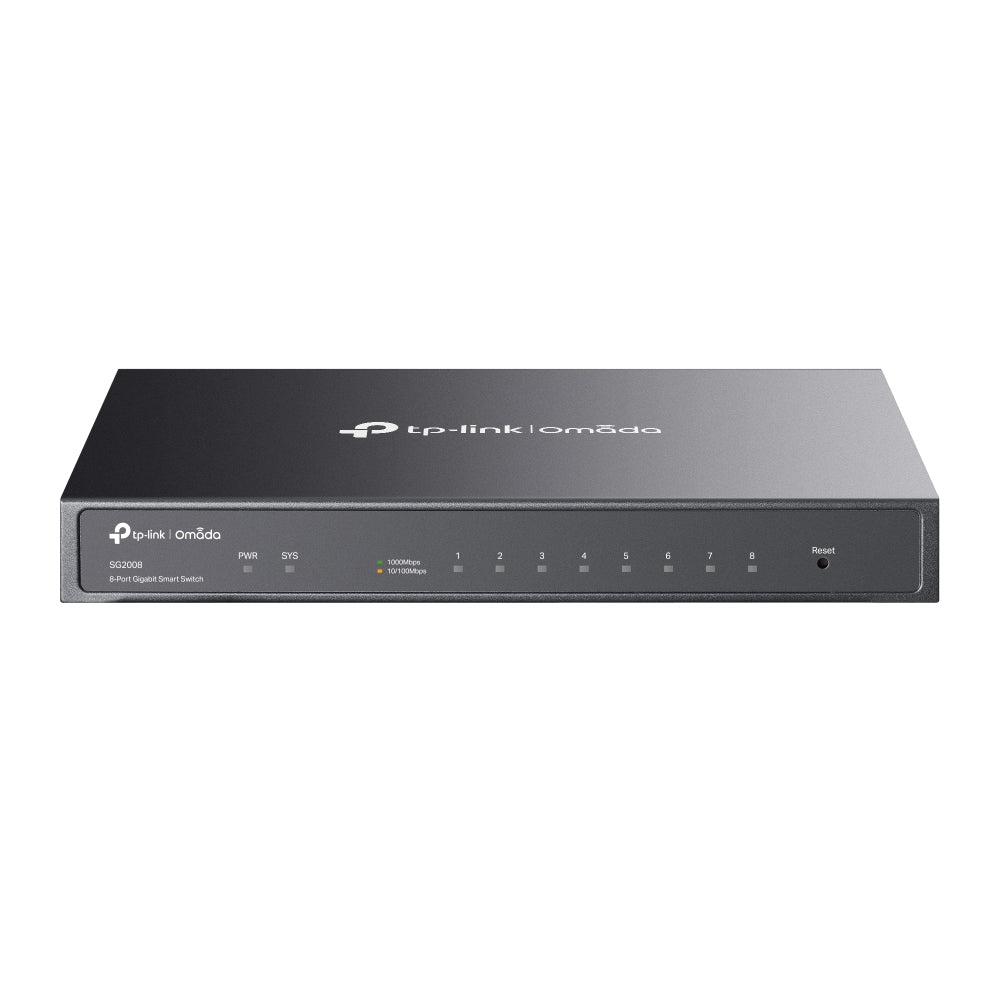

TP-Link Omada 8-Port Gigabit Smart Switch

TP-Link Omada 8-Port Gigabit Smart Switch

£67.99
£67.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

    Management features

    • Switch type: Managed
    • Switch layer: L2/L2+
    • Quality of Service (QoS) support: Yes
    • Web-based management: Yes
    • Cloud-managed: Yes
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • System event log: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 8
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Installed SFP modules quantity: 0
    • Installed SFP+ modules quantity: 0
    • Power connector: DC-in jack

    Network

    • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
    • 10G support: No
    • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Broadcast storm control: Yes
    • Rate limiting: Yes
    • Spanning tree protocol: Yes
    • VLAN support: Yes
    • Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
    • Number of VLANs: 4000

    Data transmission

    • MAC address table: 8000 entries
    • Switching capacity: 16 Gbit/s
    • Forwarding rate: 11.9 Mpps
    • Static route: Yes
    • Number of static routes: 32
    • Number of IP interfaces: 16
    • Jumbo frames support: Yes
    • Jumbo frames: 9000
    • Packet buffer memory: 4.1 MB

    Security

    • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
    • Access Control List (ACL): Yes
    • IGMP snooping: Yes
    • Security algorithms: SSH, SSH-2, SSL/TLS
    • SSH/SSL support: Yes
    • BPDU filtering/protection: Yes
    • IP-MAC-Port binding: Yes

    Multicast features

    • Multicast support: Yes

    Protocols

    • Management protocols: SNMPv1/v2c/v3, SNTP
    • GARP VLAN Registration Protocol (GVRP): Yes

    Design

    • Product colour: Black
    • LED indicators: Yes
    • Wall mountable: Yes

    Performance

    • Fanless: Yes

    Power

    • Power source: DC
    • Power supply included: Yes
    • Input current: 1 A
    • Input voltage: 12 V
    • Power consumption (max): 6.4 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): No

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 21.84 BTU/h

    Weight & dimensions

    • Width: 209 mm
    • Depth: 126 mm
    • Height: 26 mm

    Packaging content

    • Cables included: AC
    • User guide: Yes

    Certificates

    • Certification: CE, FCC, RoHS
