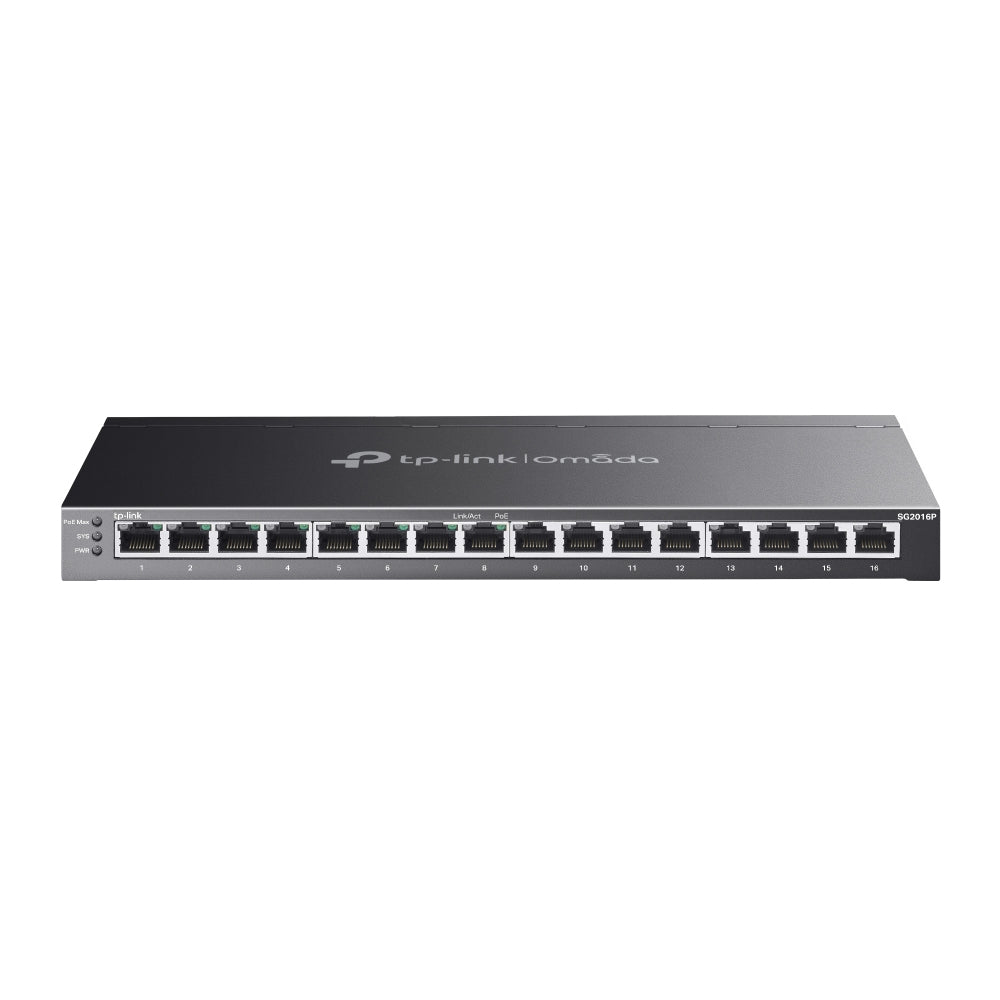

Overview TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specifications
Search the specifications
Management features Switch type Managed Switch layer L2/L2+ Quality of Service (QoS) support Yes Web-based management Yes Cloud-managed Yes ARP inspection Yes Configuring Location Settings (CLI) Yes System event log Yes MIB support RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 16 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Installed SFP modules quantity 0 Installed SFP+ modules quantity 0 Power connector DC-in jack
Network Networking standards IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x 10G support No Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T Port mirroring Yes Flow control support Yes Link aggregation Yes Broadcast storm control Yes Rate limiting Yes Auto MDI/MDI-X Yes Spanning tree protocol Yes Ethernet LAN data rates 10,100,1000 Mbit/s Auto-negotiation Yes VLAN support Yes Virtual LAN features Multicast VLAN, Tagged VLAN, Voice VLAN Number of VLANs 4000
Data transmission MAC address table 8000 entries Switching capacity 32 Gbit/s Forwarding rate 23.81 Mpps Number of queues 8 Jumbo frames support Yes Jumbo frames 9000 Packet buffer memory 4.1 MB
Security DHCP features DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping Access Control List (ACL) Yes IGMP snooping Yes Security algorithms EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS MAC address filtering Yes SSH/SSL support Yes BPDU filtering/protection Yes IP-MAC-Port binding Yes Authentication Guest VLAN, MAC-based authentication, Port-based authentication Queue scheduling algorithms SP, Weighted Round Robin (WRR) MAC address entries Dynamic MAC address entries, Static MAC address entries
Multicast features Multicast support Yes Multicast Listener Discovery (MLD) snooping MLD v1, MLD v2
Protocols Supported network protocols ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 GARP VLAN Registration Protocol (GVRP) Yes IPv4 & IPv6 features Dual stack IPv4/IPv6
Design Rack mounting Yes Product colour Black LED indicators PoE, Power, System
Performance Firmware upgradeable Yes Fanless Yes
Power Power source DC/PoE DC input voltage 53.5 V Power consumption (max) 146.5 W
Power over Ethernet (PoE) Power over Ethernet (PoE) Yes Power over Ethernet plus (PoE+) ports quantity 8 Total Power over Ethernet (PoE) budget 120 W
Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 499.98 BTU/h
Weight & dimensions Width 286 mm Depth 111.7 mm Height 25.4 mm
Certificates Certification CE, FCC, RoHS
In the box
Cables included: AC Manual: Yes
