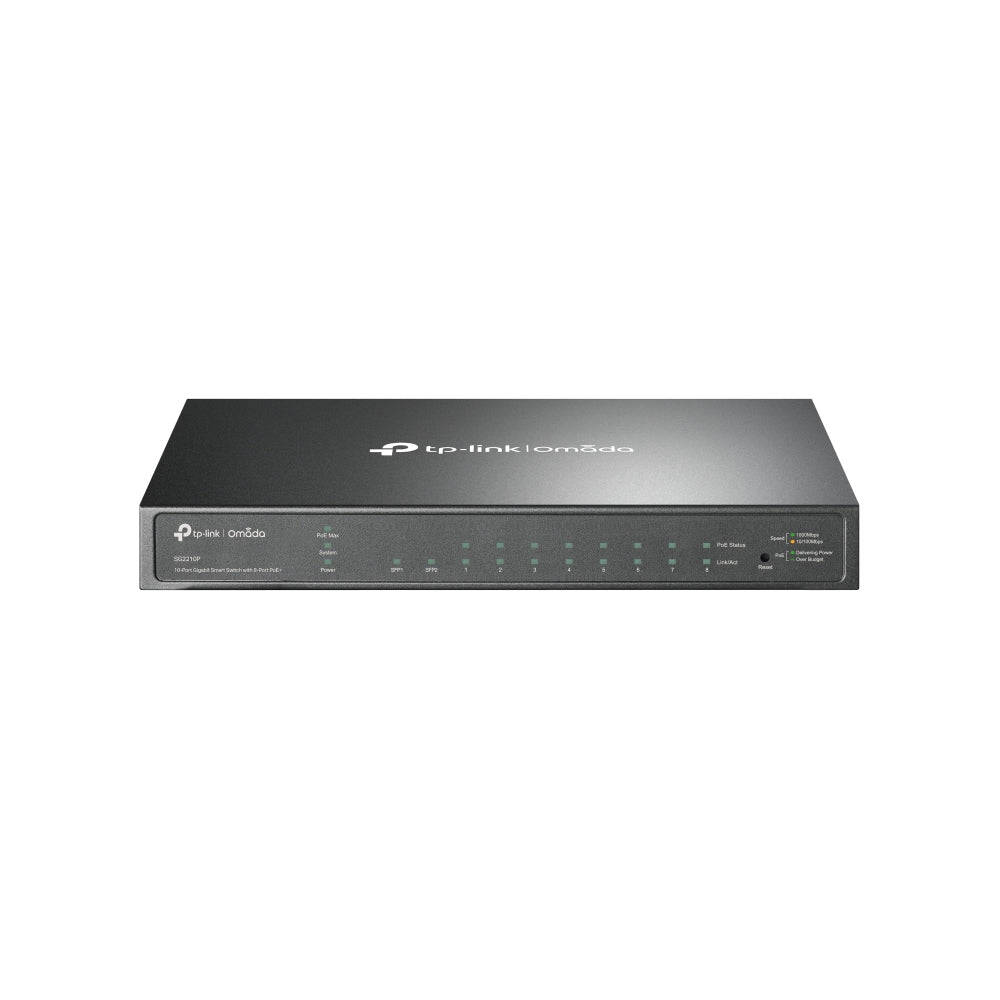

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

£130.99
£130.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

    Management features

    • Switch type: Managed
    • Switch layer: L2/L2+
    • Quality of Service (QoS) support: Yes
    • Web-based management: Yes
    • Cloud-managed: Yes
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • System event log: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 8
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Installed SFP modules quantity: 0
    • Installed SFP+ modules quantity: 0
    • SFP module slots quantity: 2
    • Power connector: DC-in jack

    Network

    • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • 10G support: No
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Broadcast storm control: Yes
    • Rate limiting: Yes
    • Auto MDI/MDI-X: Yes
    • Spanning tree protocol: Yes
    • Auto-negotiation: Yes
    • VLAN support: Yes

    Data transmission

    • MAC address table: 8000 entries
    • Switching capacity: 20 Gbit/s
    • Forwarding rate: 14.88 Mpps
    • Jumbo frames support: Yes
    • Jumbo frames: 9000
    • Packet buffer memory: 4.1 MB

    Security

    • Access Control List (ACL): Yes
    • IGMP snooping: Yes
    • Static port security: Yes
    • SSH/SSL support: Yes
    • BPDU filtering/protection: Yes
    • IP-MAC-Port binding: Yes
    • Authentication: MAC-based authentication, Port-based authentication

    Multicast features

    • Multicast support: Yes
    • Multicast Listener Discovery (MLD) snooping: Y

    Protocols

    • IPv4 & IPv6 features: Dual stack IPv4/IPv6

    Design

    • Product colour: Black
    • LED indicators: Yes

    Performance

    • Firmware upgradeable: Yes

    Power

    • Power source: DC/PoE
    • Power supply included: Yes
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50/60 Hz
    • Power consumption (max): 77.8 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%

    Weight & dimensions

    • Width: 209 mm
    • Depth: 126 mm
    • Height: 26 mm

    Packaging content

    • Cables included: AC
    • Manual: Yes

    Certificates

    • Certification: CE, FCC, RoHS
