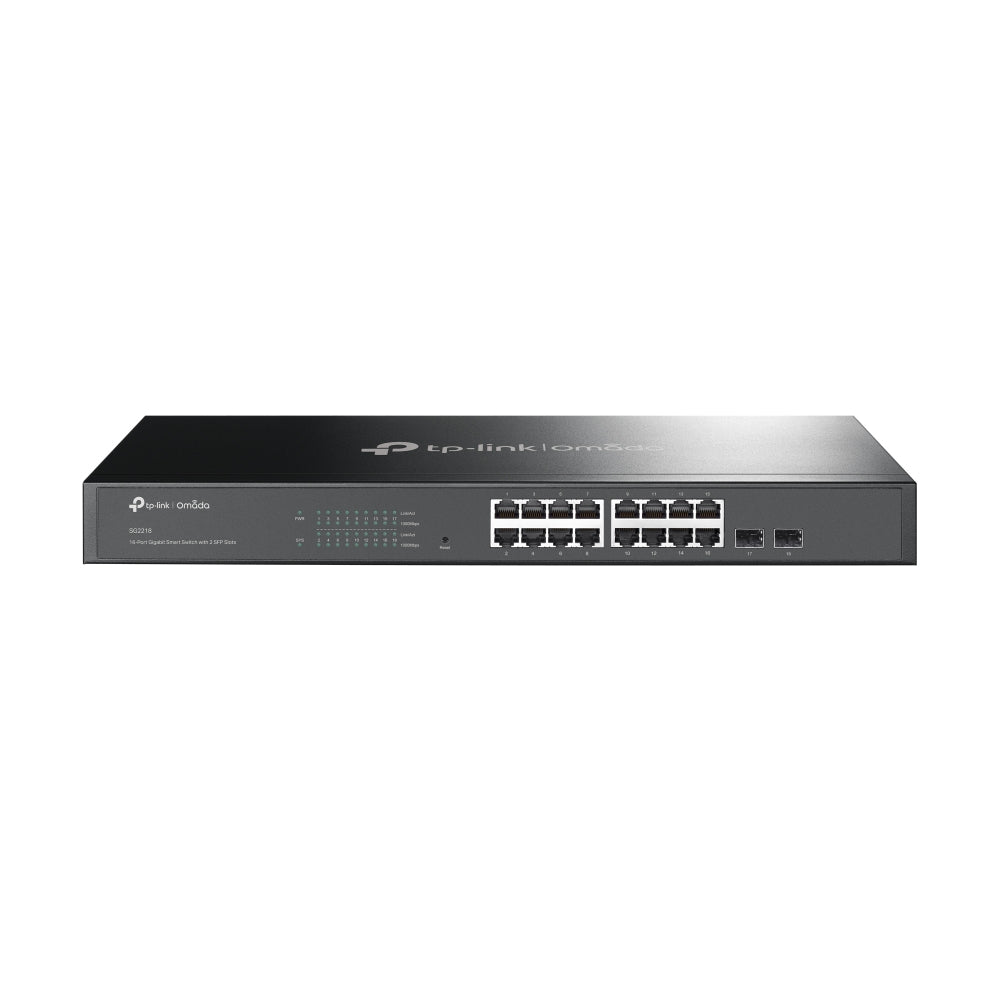

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

Part no.SG2218

£137.49ex VAT£164.99 inc VAT
£0.00 £137.49ex VAT£164.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

Out of stock: ask us for an alternative

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
System event logYes
MIB supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Gigabit Ethernet (copper) ports quantity16
SFP module slots quantity2
Network
Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G supportNo
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportYes
Virtual LAN featuresPort-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4000
Data transmission
MAC address table8000 entries
Switching capacity36 Gbit/s
Forwarding rate26.8 Mpps
Store-and-forwardYes
Static routeYes
Number of static routes32
Number of IP interfaces16
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
Multicast features
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingY
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
Design
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Performance
FanlessYes
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)12.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation41.97 BTU/h
Weight & dimensions
Width440 mm
Depth180 mm
Height44 mm
Certificates
CertificationCE, FCC, RoHS

In the box

  • Cables included: AC, LAN (RJ-45)
  • Quick start guide: Yes
