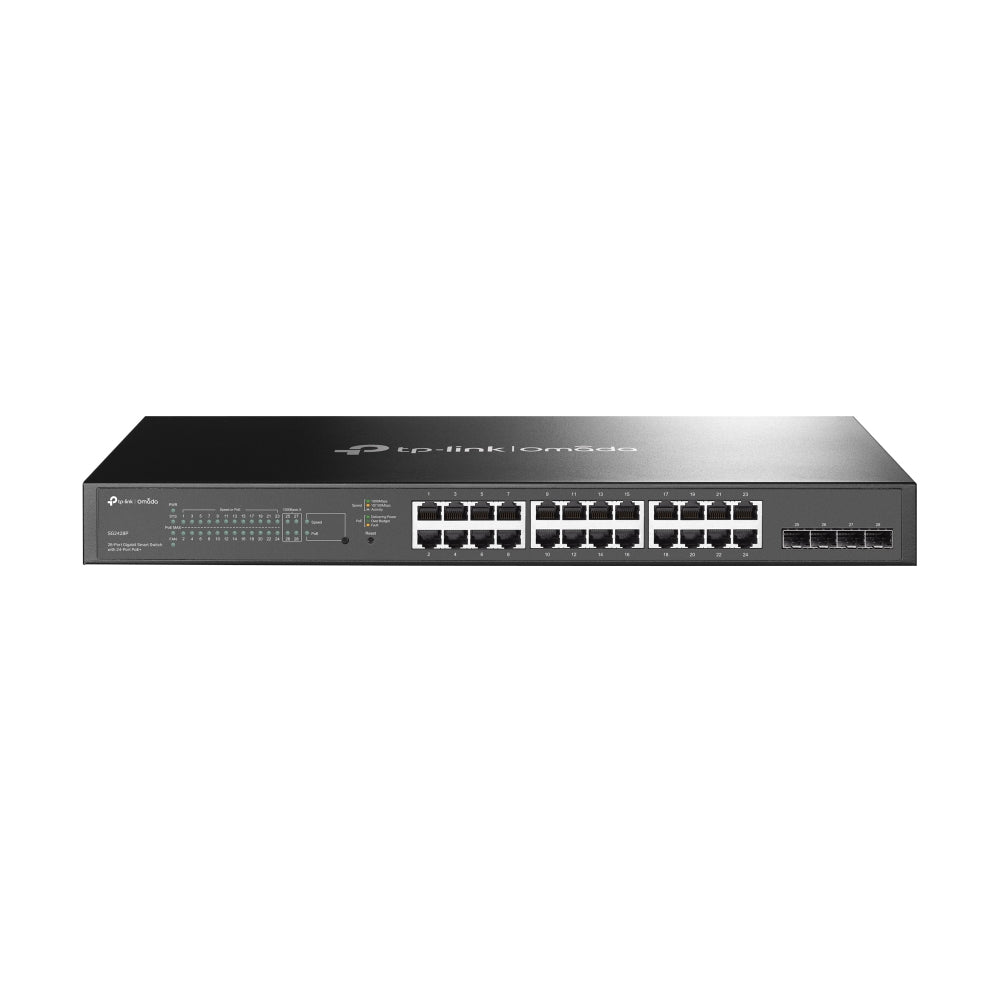

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

Part no.SG2428P

£229.99ex VAT£275.99 inc VAT
£0.00 £229.99ex VAT£275.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
System event logYes
MIB supportY
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Gigabit Ethernet (copper) ports quantity24
SFP module slots quantity4
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs4000
Optical fiber
Fiber ethernet cabling technology1000BASE-X
Data transmission
MAC address table8000 entries
Switching capacity56 Gbit/s
Forwarding rate41.66 Mpps
Number of queues8
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL supportYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
Authentication typeRADIUS
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast supportYes
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
Design
Rack mountingYes
Form factor1U
Product colourBlack
Number of fans2 fan(s)
Performance
Firmware upgradeableYes
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)301.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget250 W
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1052.94 BTU/h
Weight & dimensions
Width440 mm
Depth220 mm
Height44 mm
Certificates
CertificationCE, FCC, RoHS

In the box

  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes
