• TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
1 1

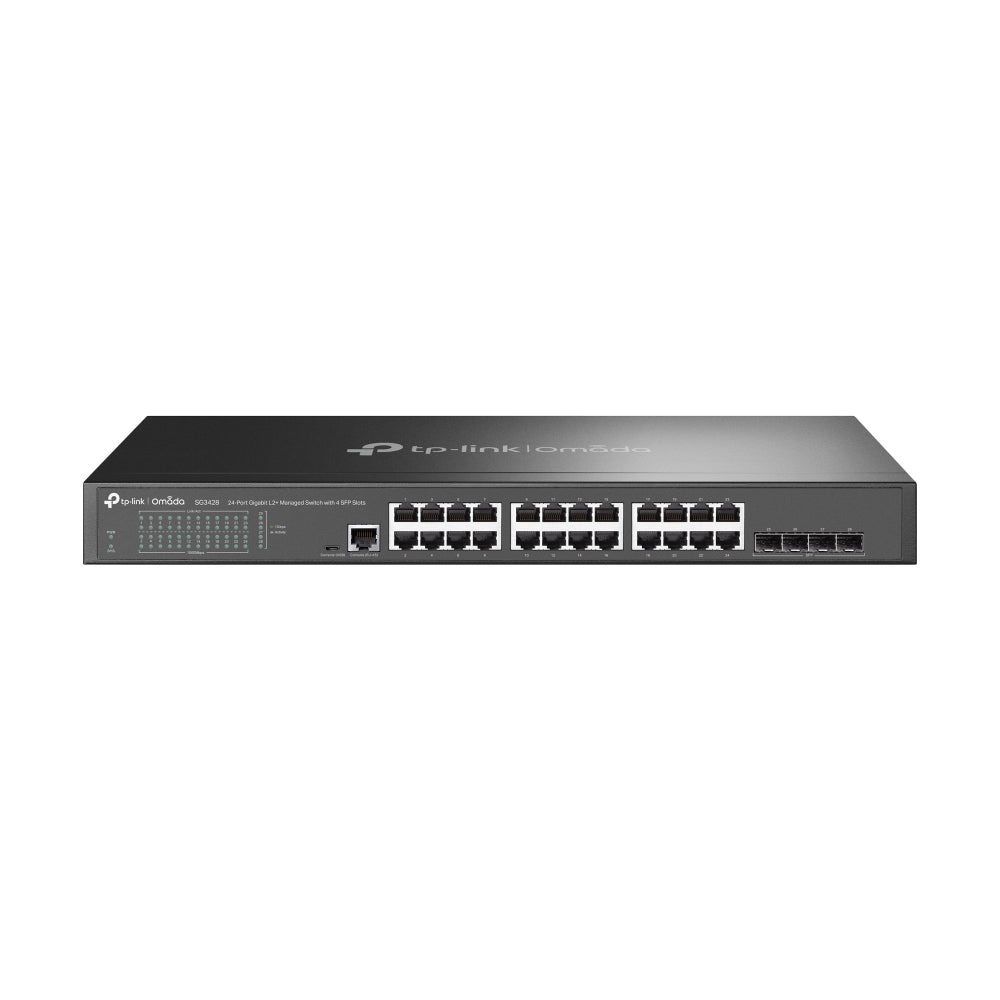

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

Part no.SG3428

£176.66ex VAT£211.99 inc VAT
£0.00 £176.66ex VAT£211.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

Out of stock: ask us for an alternative

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.


Specifications

Management features
Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
MIB supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Gigabit Ethernet (copper) ports quantity24
SFP module slots quantity4
Console portRJ-45/Micro-USB
Network
Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G supportNo
Port mirroringYes
IP routingYes
Policy-based routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Ethernet LAN data rates10,100,1000 Mbit/s
IPv4 routes48
IPv6 routes48
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4000
Data transmission
MAC address table16000 entries
Switching capacity56 Gbit/s
Forwarding rate41.66 Mpps
Store-and-forwardYes
Static routeYes
Number of static routes48
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory12 MB
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
Static port securityYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
AuthenticationMAC-based authentication, Port-based authentication
Authentication typeAAA, RADIUS, TACACS+
Multicast features
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingY
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans0 fan(s)
Power
Power sourceAC
Power supply includedNo
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)20.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation70.3 BTU/h
Weight & dimensions
Width440 mm
Depth180 mm
Height44 mm

In the box

  • Cables included: LAN (RJ-45)
  • Quick start guide: Yes
