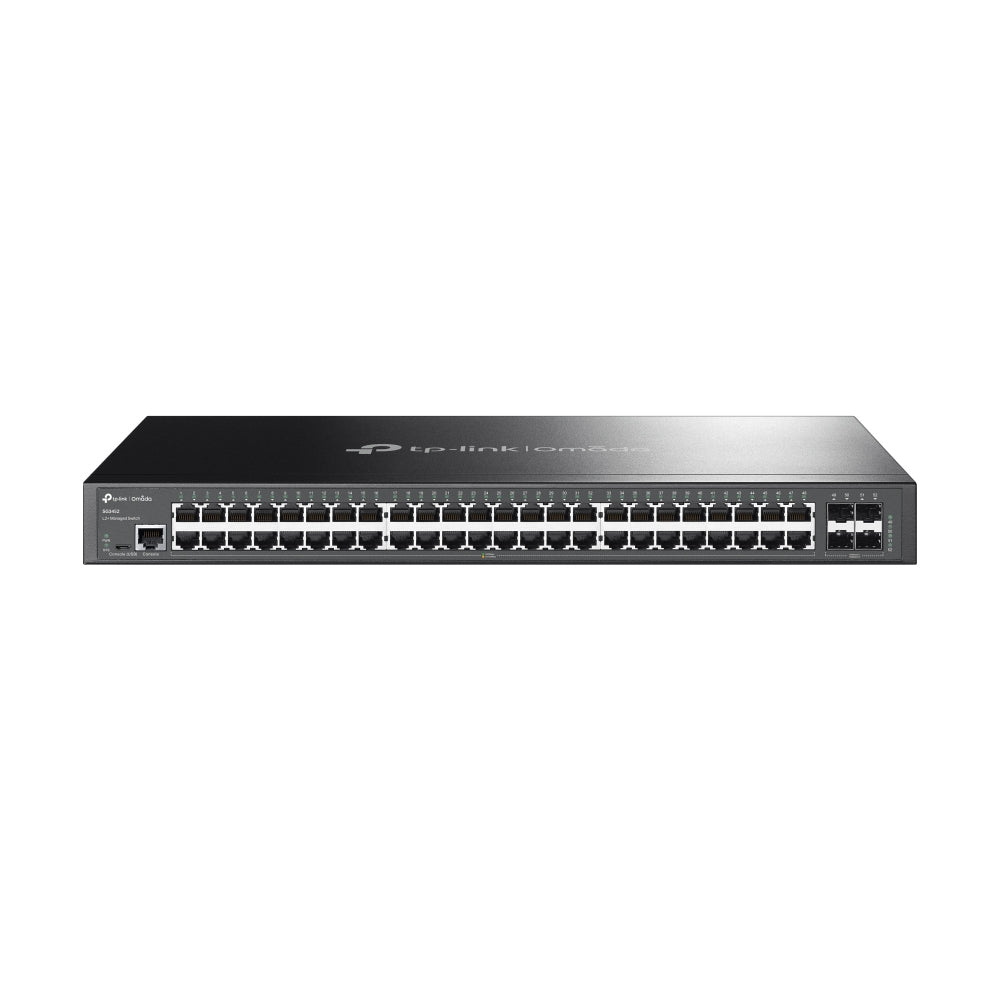

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots

£377.99
£377.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

    Management features

    • Switch type: Managed
    • Switch layer: L2+
    • Quality of Service (QoS) support: Yes
    • Web-based management: Yes
    • Cloud-managed: Yes
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • System event log: Yes
    • MIB support: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 48
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Installed SFP modules quantity: 0
    • Installed SFP+ modules quantity: 0
    • Gigabit Ethernet (copper) ports quantity: 48
    • SFP module slots quantity: 4
    • Console port: RJ-45/Micro-USB

    Network

    • Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
    • 10G support: No
    • Port mirroring: Yes
    • IP routing: Yes
    • Policy-based routing: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Broadcast storm control: Yes
    • Spanning tree protocol: Yes
    • Head-of-line (HOL) blocking: Yes
    • Ethernet LAN data rates: 10,100,1000 Mbit/s
    • IPv4 routes: 48
    • IPv6 routes: 48
    • VLAN support: Yes
    • Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
    • Number of VLANs: 4000

    Data transmission

    • MAC address table: 16000 entries
    • Switching capacity: 104 Gbit/s
    • Forwarding rate: 77.38 Mpps
    • Store-and-forward: Yes
    • Static route: Yes
    • Jumbo frames support: Yes
    • Jumbo frames: 9000

    Security

    • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
    • Access Control List (ACL): Yes
    • IGMP snooping: Yes
    • MAC address filtering: Yes
    • SSH/SSL support: Yes
    • Loop protection: Yes
    • BPDU filtering/protection: Yes
    • IP-MAC-Port binding: Yes
    • Authentication: MAC-based authentication, Port-based authentication
    • Authentication type: AAA, RADIUS, TACACS+

    Multicast features

    • Multicast support: Yes
    • Multicast Listener Discovery (MLD) snooping: Y

    Protocols

    • Management protocols: SNMPv1/v2c/v3, SNTP
    • GARP VLAN Registration Protocol (GVRP): Yes
    • IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

    Design

    • Rack mounting: Yes
    • Form factor: 1U
    • Product colour: Black

    Performance

    • Internal memory: 256 MB
    • Flash memory: 32 MB
    • Fanless: Yes

    Power

    • Power source: AC
    • Power supply included: Yes
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50/60 Hz
    • Power consumption (max): 34.86 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): No

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 118.94 BTU/h

    Weight & dimensions

    • Width: 440 mm
    • Depth: 220 mm
    • Height: 44 mm

    Packaging content

    • Cables included: AC
    • Quick start guide: Yes
    • Rack mount kit: Yes

    Certificates

    • Certification: CE, FCC, RoHS
