• TP-Link Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
1 1

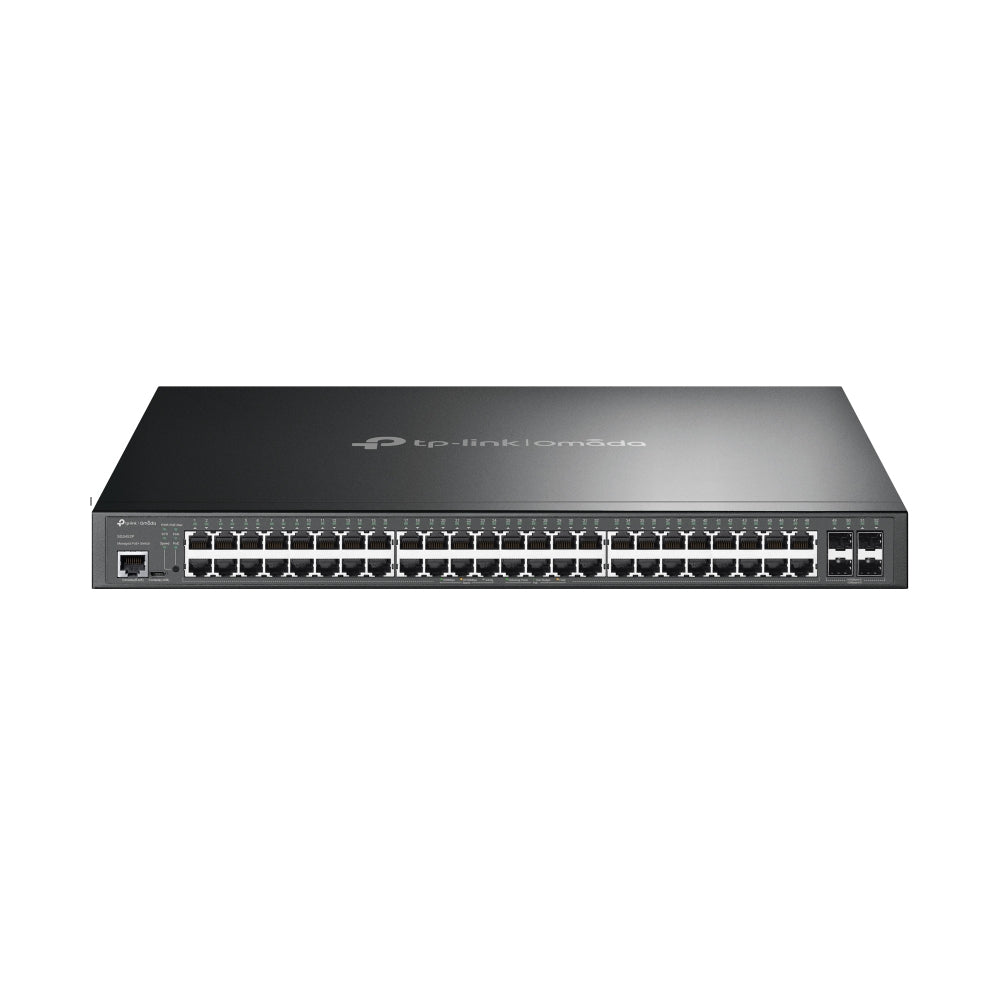

TP-Link Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

TP-Link Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

Part no.SG3452P

£453.33ex VAT£543.99 inc VAT
£0.00 £453.33ex VAT£543.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
System event logYes
MIB supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP module slots quantity4
Console portRJ-45/micro-USB
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G supportNo
Port mirroringYes
IP routingYes
Policy-based routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Ethernet LAN data rates10,100,1000 Mbit/s
Active link detectionYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4000
Data transmission
MAC address table16000 entries
Switching capacity104 Gbit/s
Forwarding rate77.38 Mpps
Store-and-forwardYes
Static routeYes
Number of static routes48
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory12 MB
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication, Port-based authentication
Password protectionYes
Multicast features
Multicast supportYes
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
Design
Rack mountingYes
Form factor1U
Product colourBlack
Reset buttonYes
LED indicatorsYes
Number of fans3 fan(s)
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)464.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity48
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget384 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1584.08 BTU/h
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm

In the box

  • Cables included: AC
  • Quick start guide: Yes
  • Manual: Yes
