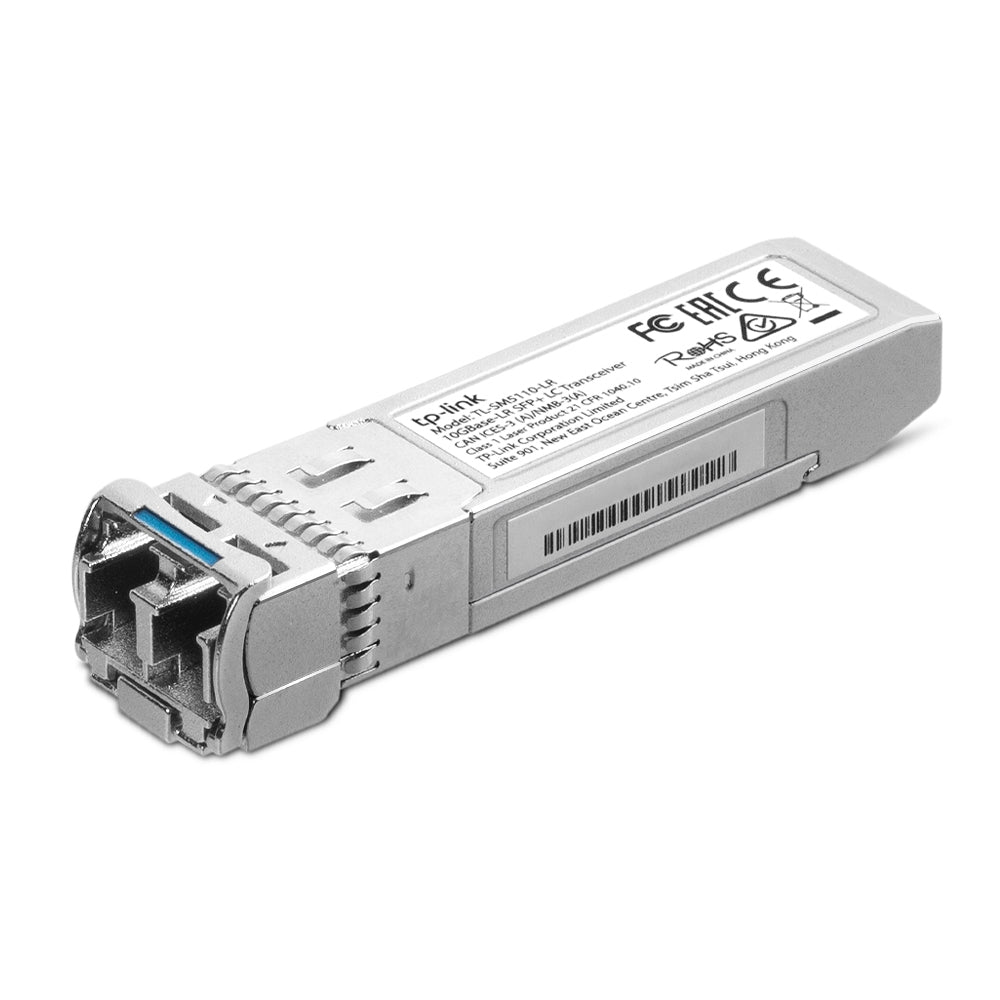

TP-Link 10Gbase-LR SFP+ LC Transceiver

TP-Link 10Gbase-LR SFP+ LC Transceiver

£41.99
£41.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

    Performance

    • SFP transceiver type: Fiber optic
    • Maximum data transfer rate: 10000 Mbit/s
    • Interface type: SFP+
    • Single-mode fiber (SMF) supported: Yes
    • Multi-mode fiber (MMF) supported: No
    • Fiber optic connector: LC
    • Fiber cable diameters supported (core/cladding): 9/125 µm
    • SFP transceiver standard: LR
    • Maximum transfer distance: 10000 m
    • Wavelength: 1310 nm
    • Networking standards: IEEE 802.3ae
    • Duplex system: Full
    • Digital Diagnostics Monitoring (DDM): Yes

    Features

    • Hot-Plug support: Yes
    • Hot-swap: Yes
    • Brand compatibility: TP-Link
    • Compatible products: Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

    Power

    • Input voltage: 3.3 V

    Certificates

    • Certification: FCC, CE

    Operational conditions

    • Operating temperature (T-T): 0 - 70 °C
    • Storage temperature (T-T): -40 - 85 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%

    Weight & dimensions

    • Width: 56.7 mm
    • Depth: 13.9 mm
    • Height: 10.3 mm

    Packaging content

    • Quantity per pack: 1 pc(s)

    Packaging data

    • Package width: 81.5 mm
    • Package depth: 122.5 mm
    • Package height: 38.5 mm
    • Package weight: 60 g

    Logistics data

    • Harmonized System (HS) code: 85369010
