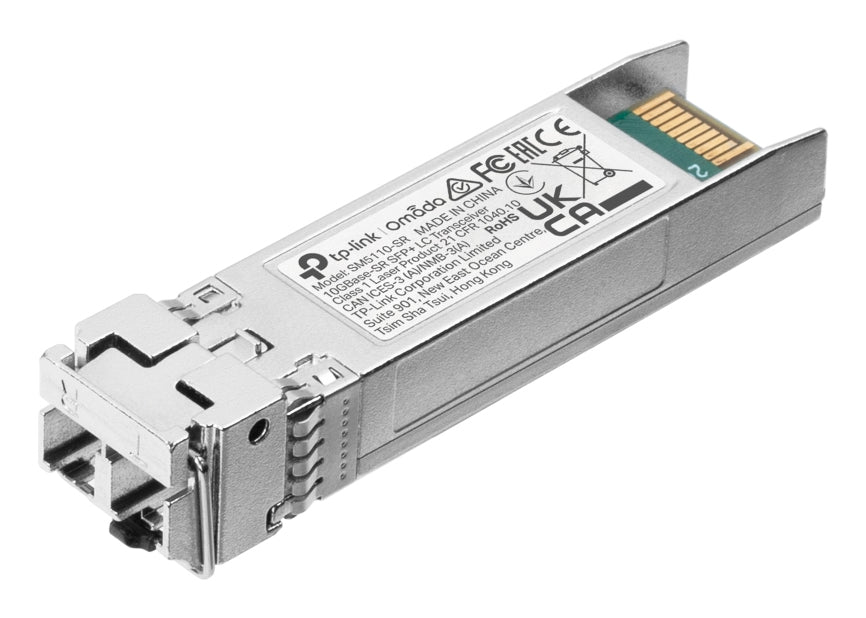

TP-Link Omada 10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector
TP-Link Omada 10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector
Part no.SM5110-SR
Regular price
£28.33ex VAT£33.99 inc VAT
Regular price
£0.00
Sale price
£28.33ex VAT£33.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
Out of stock: ask us for an alternative
Overview
The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Specifications
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
Power
| Input voltage | 3.3 V |
|---|
Certificates
| Certification | FCC, CE |
|---|
Operational conditions
| Minimum operating temperature | 0 °C |
|---|---|
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 61.3 mm |
|---|---|
| Depth | 14.5 mm |
| Height | 12.2 mm |
In the box
- Quantity per pack: 1 pc(s)
