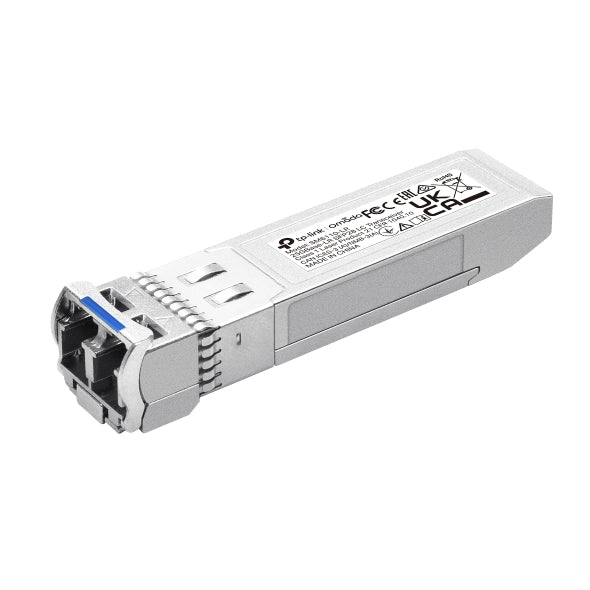

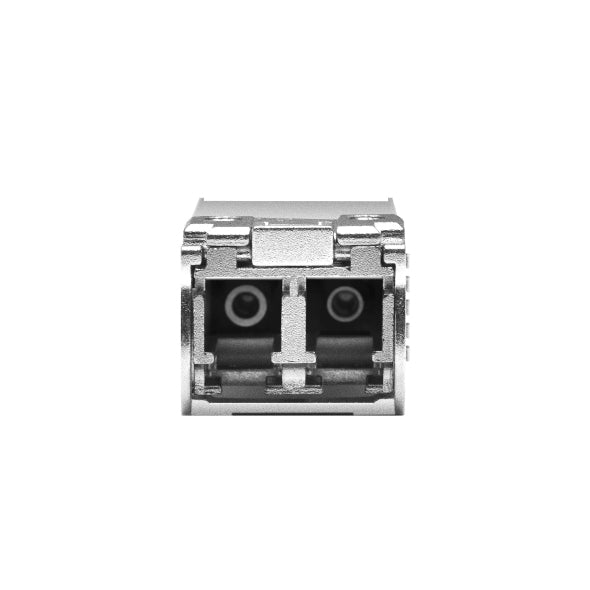

TP-Link Omada SM6110-LR Network Transceiver Module Fiber optic 25780 Mbit/s SFP+ 1310 nm
TP-Link Omada SM6110-LR Network Transceiver Module Fiber optic 25780 Mbit/s SFP+ 1310 nm
Part no.SM6110-LR
Regular price
£64.99ex VAT£77.99 inc VAT
Regular price
£0.00
Sale price
£64.99ex VAT£77.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specifications
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 25780 Mbit/s |
| Interface type | SFP+ |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
Features
| Product colour | Grey |
|---|---|
| Hot-Plug support | Yes |
| Hot-swap | Yes |
Power
| Input voltage | 3.3 V |
|---|
Operational conditions
| Minimum operating temperature | 0 °C |
|---|---|
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 57 mm |
|---|---|
| Depth | 14 mm |
| Height | 12 mm |
In the box
- Quantity per pack: 1 pc(s)
