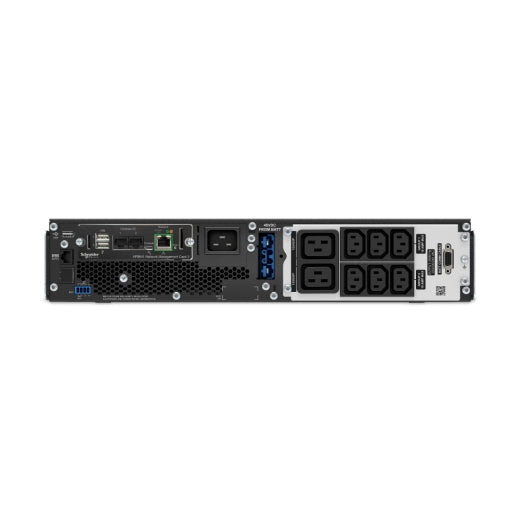

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 6x C13+2x C19 IEC outlets, Network Card, W/ rail kit, W/O Lithium-ion external battery

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 6x C13+2x C19 IEC outlets, Network Card, W/ rail kit, W/O Lithium-ion external battery

£1,991.99
£1,991.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.

    Features

    • UPS topology: Line-Interactive
    • Output power capacity: 2.2 kVA
    • Output power: 1980 W
    • Waveform: Sine
    • Input operation voltage (min): 50 V
    • Input operation voltage (max): 230 V
    • Input frequency: 40/70 Hz
    • Output operation voltage (max): 230 V
    • Output frequency: 50/60 Hz
    • Surge energy rating: 432 J
    • Heat dissipation: 317 BTU/h
    • Noise level: 50 dB

    Ports & interfaces

    • AC outlets quantity: 8 AC outlet(s)
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • Serial interface: Yes
    • Serial interface type: RJ-45
    • Emergency Power Off (EPO) connector: Yes
    • SmartSlot: Yes

    Design

    • Form factor: Rackmount
    • Product colour: Black
    • Rack capacity: 2U
    • Cable length: 1.8 m
    • International Protection (IP) code: IP20

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 50 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Operating altitude: 0 - 3048 m
    • Non-operating altitude: 0 - 15240 m

    Certificates

    • Certification: CE, EAC

    Weight & dimensions

    • Width: 85 mm
    • Depth: 508 mm
    • Height: 432 mm
    • Weight: 22 kg

    Packaging data

    • Package width: 749 mm
    • Package depth: 594 mm
    • Package height: 246 mm
    • Package weight: 29.6 kg
    • Package type: Box

    Logistics data

    • Total carbon footprint (kg of CO2e): 3558.01
    • Warranty period: 5 year(s)
