Overview
See the Specifications tab for the full details of this product.
Specifications
Features
| Output power capacity | 3 kVA |
|---|---|
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 285 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 945 J |
| Crest factor | 3:1 |
| Noise level | 50 dB |
Ports & interfaces

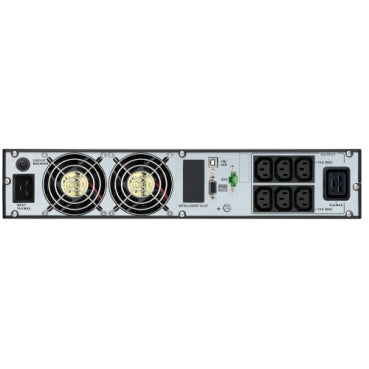

| AC outlet types | IEC 60320 |
|---|---|
| Power plug | C20 coupler |
| USB port | Yes |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery voltage | 72 V |
| Battery recharge time | 4 h |
Design
| Product colour | Black |
|---|---|
| Rack capacity | 2U |
| International Protection (IP) code | IP20 |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Width | 438 mm |
|---|---|
| Depth | 632 mm |
| Height | 86 mm |
| Weight | 28.5 kg |
