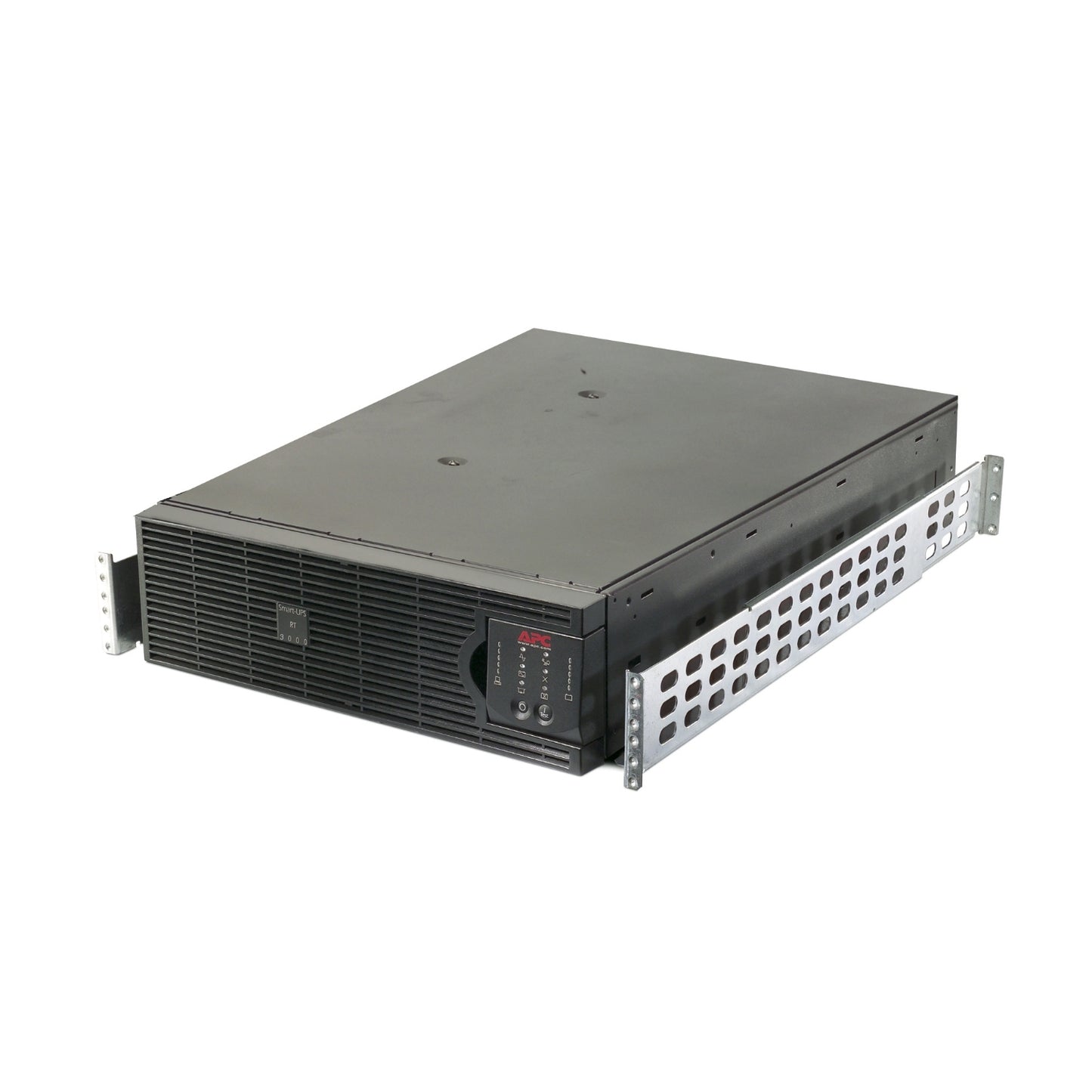

APC Smart-UPS SURTD3000XLIM 3000VA/2100W Online UPS, 10 Outlets, Rackmount
APC Smart-UPS SURTD3000XLIM 3000VA/2100W Online UPS, 10 Outlets, Rackmount
Part no.SURTD3000XLIM
Regular price
£2,500.00ex VAT£3,000.00 inc VAT
Regular price
£0.00
Sale price
£2,500.00ex VAT£3,000.00 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
Out of stock: ask us for an alternative
Overview
High density, double-conversion on-line power protection with scalable runtime.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 3 kVA |
| Output power | 2100 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 92% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |

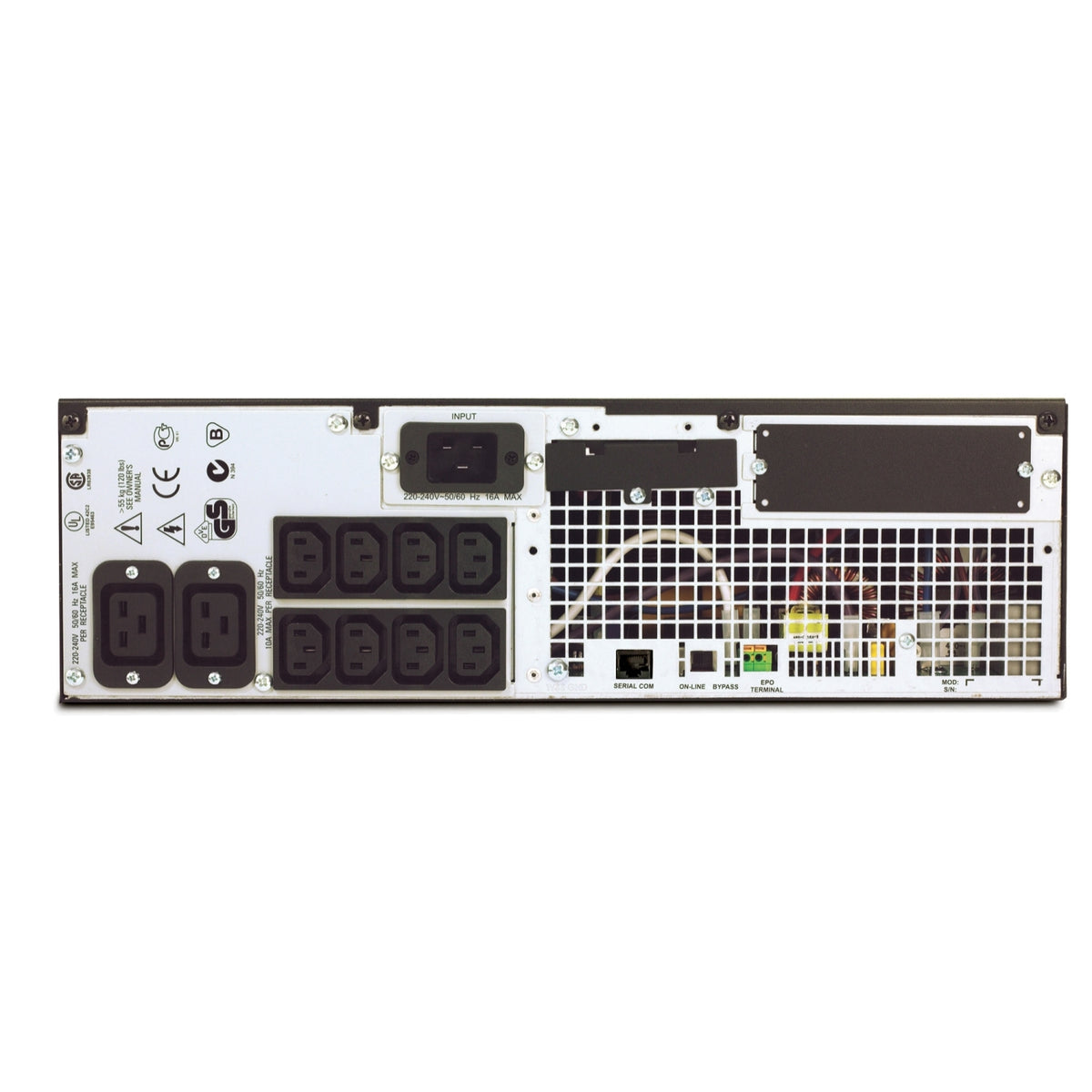

Ports & interfaces
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery recharge time | 2.5 h |
Design
| Form factor | Rackmount |
|---|---|
| Product colour | Black |
| Rack capacity | 3U |
| Cable length | 2.44 m |
| LED indicators | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Certificates
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 130 mm |
|---|---|
| Depth | 660 mm |
| Height | 432 mm |
| Weight | 54.5 kg |
Other features
| Dimensions (WxDxH) | 130 x 660 x 432 mm |
|---|---|
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
