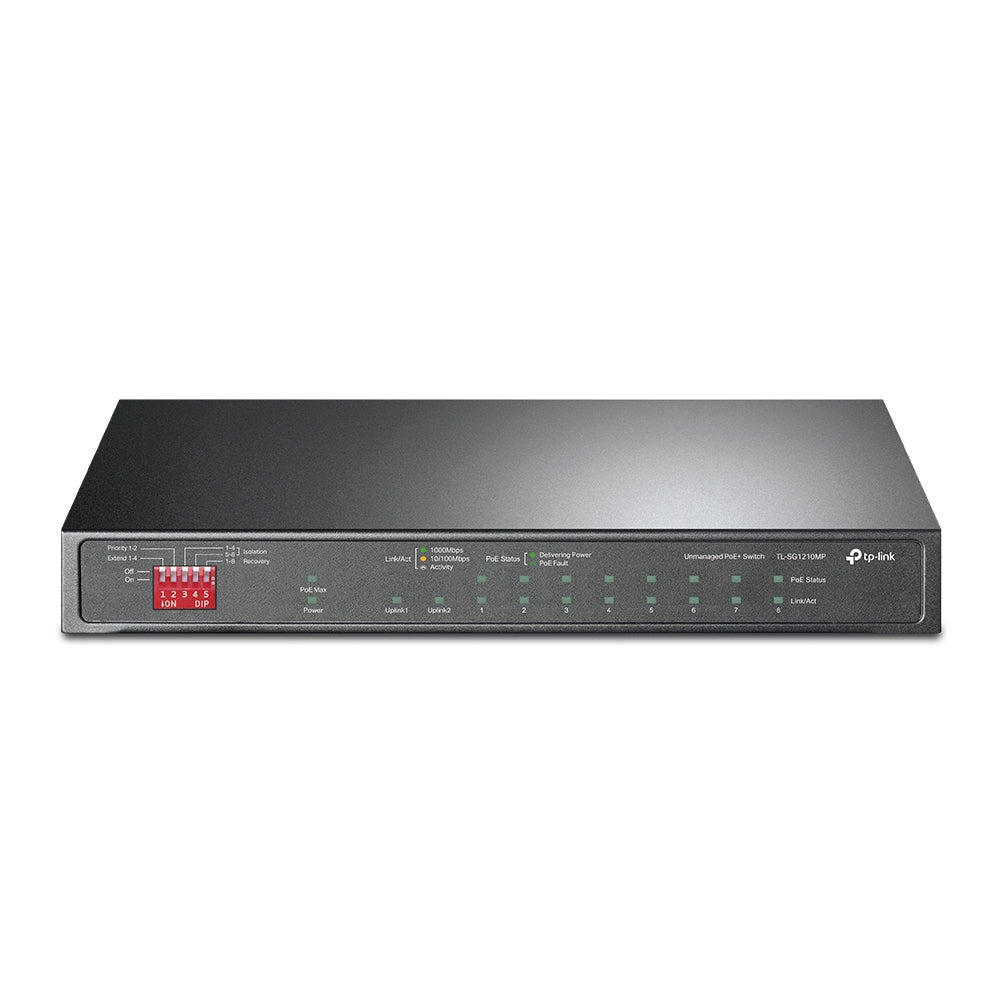

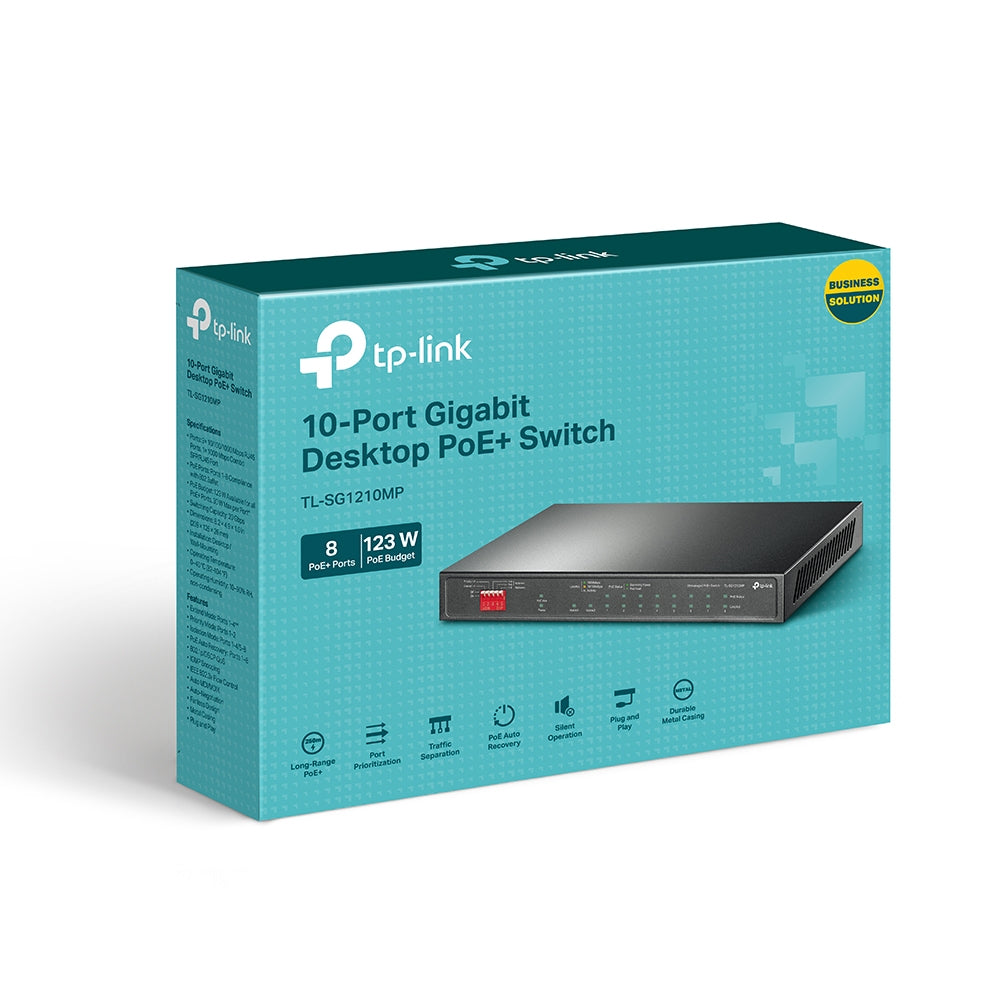

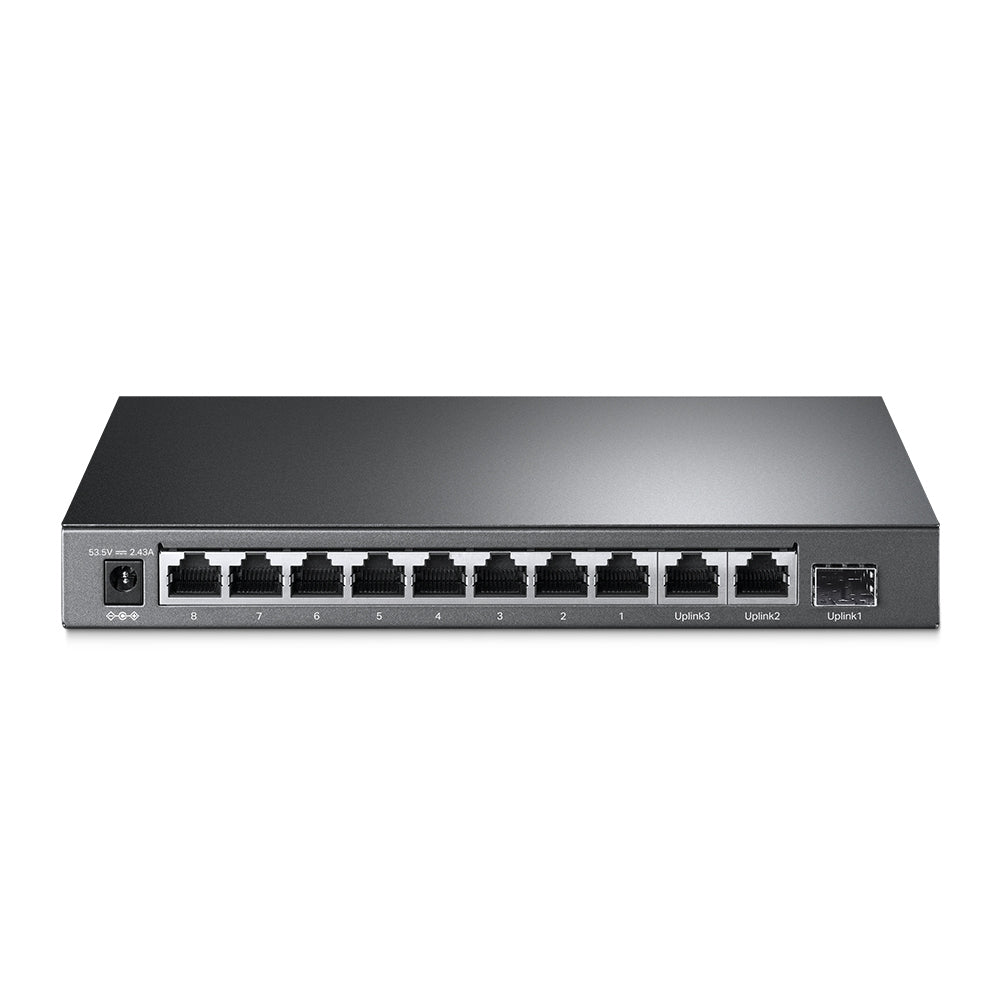

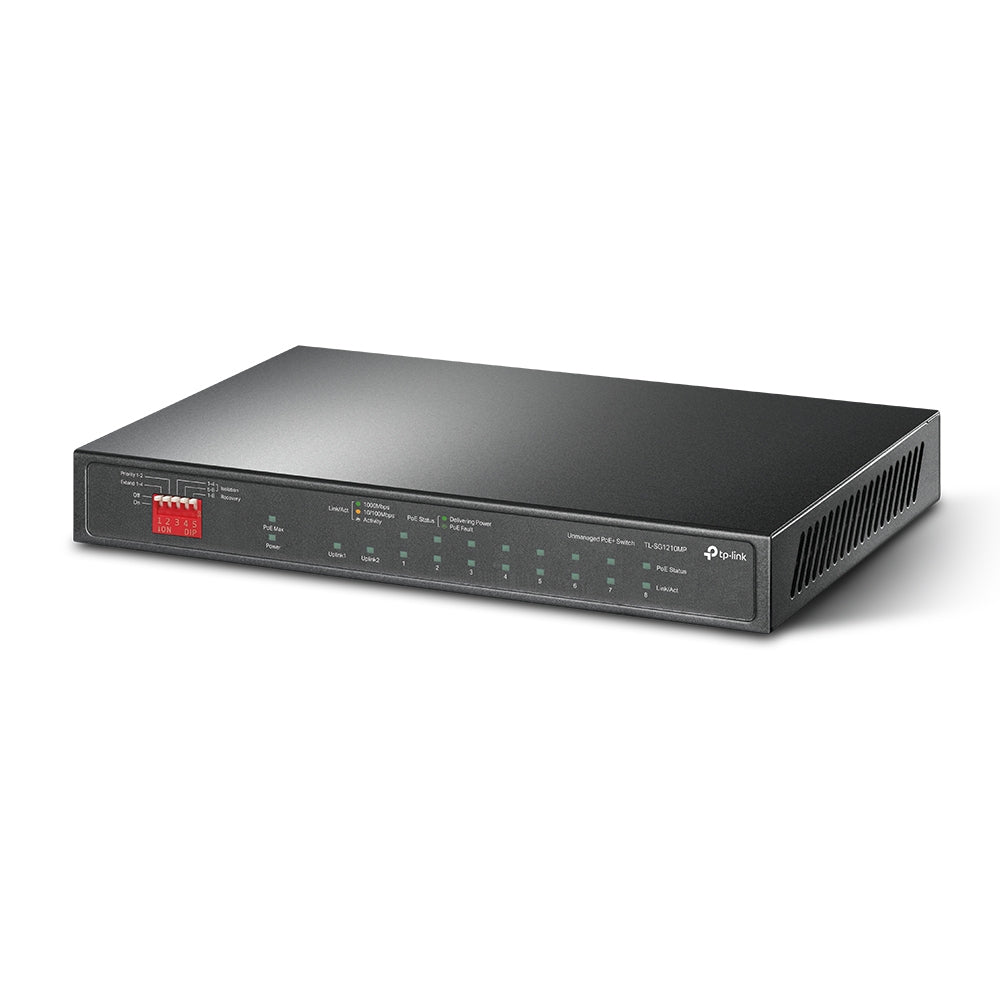

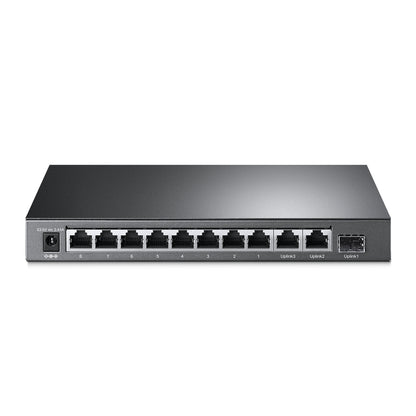

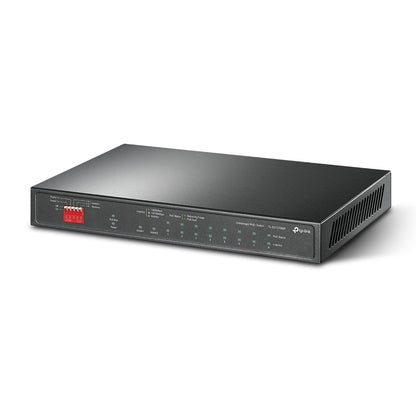

TP-Link TL-SG1210MP 9-Port Gigabit PoE+ Unmanaged Switch
TP-Link TL-SG1210MP 9-Port Gigabit PoE+ Unmanaged Switch
Part no.TL-SG1210MP
Regular price
£90.83ex VAT£108.99 inc VAT
Regular price
£0.00
Sale price
£90.83ex VAT£108.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
Out of stock: ask us for an alternative
Overview
See the Specifications tab for the full details of this product.
Specifications
Management features
| Switch type | Unmanaged |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 9 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 1 |
Network
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
Data transmission
| MAC address table | 4000 entries |
|---|---|
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 14.88 MB |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Performance
| Fanless | Yes |
|---|
Power
| Power source | DC |
|---|---|
| Input current | 2.43 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 141.4 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 123 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 482.17 BTU/h |
Weight & dimensions
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
Certificates
| Certification | CE, FCC |
|---|
In the box
- Quick start guide: Yes
