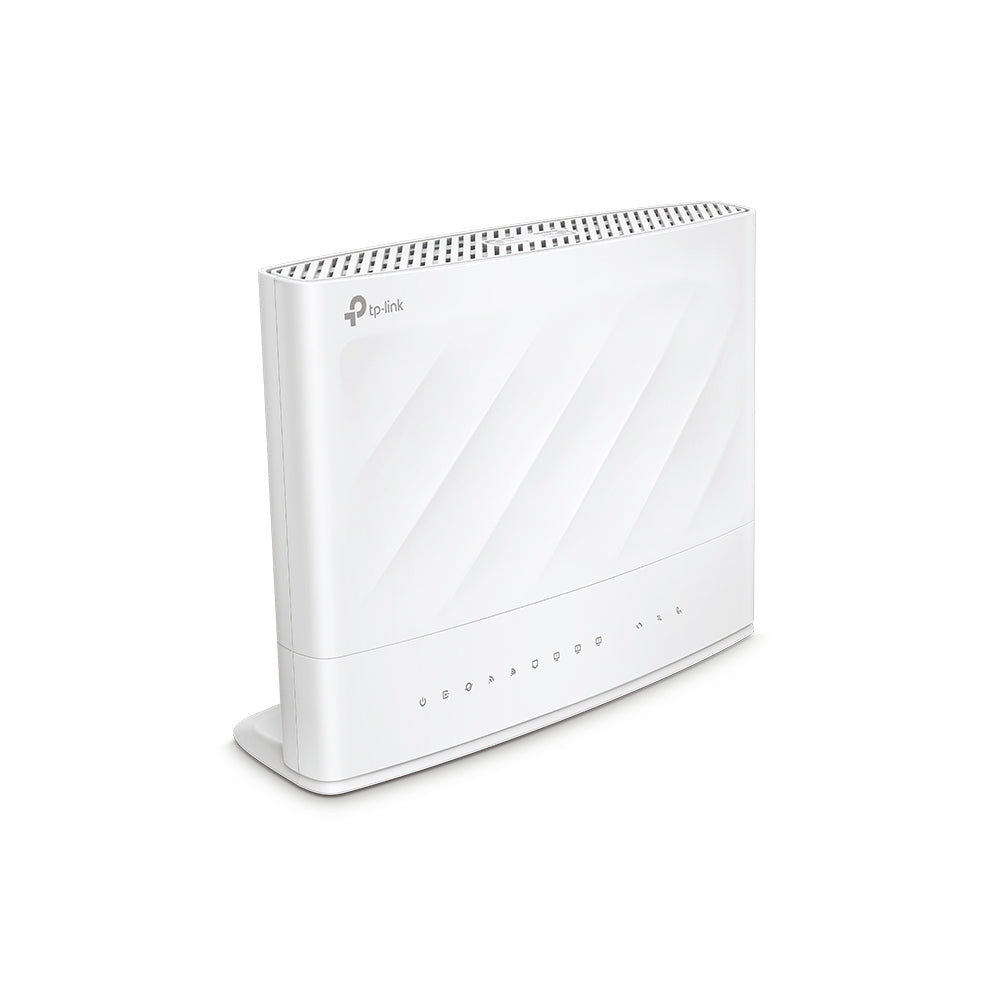

  • TP-Link VX230v Wi-Fi 6 Dual-Band Router, image 2
1 2

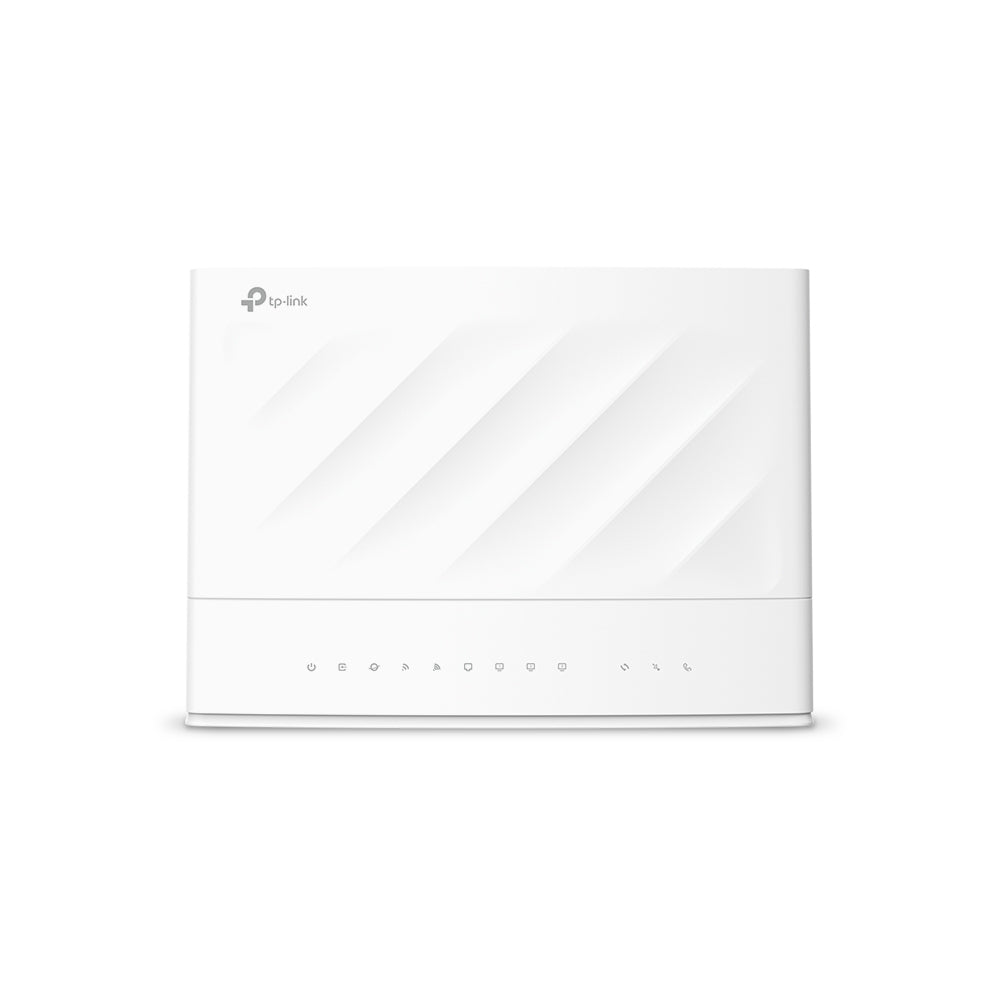

TP-Link VX230v Wi-Fi 6 Dual-Band Router

TP-Link VX230v Wi-Fi 6 Dual-Band Router

Part no.VX230V

£59.99ex VAT£71.99 inc VAT
£0.00 £59.99ex VAT£71.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

Out of stock: ask us for an alternative

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

See the Specifications tab for the full details of this product.

Specifications

WAN connection
Ethernet WANYes
DSL WANYes
SIM card slotNo
3G/4G USB modem compatibilityNo
WAN connection typeRJ-11, RJ-45
Wireless LAN features
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN data transfer rate (max)1201 Mbit/s
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)574 Mbit/s
WLAN data transfer rate (second band)1201 Mbit/s
Modulation1024-QAM
Network
Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Port forwardingYes
Port triggeringYes
Dynamic DNS (DDNS)Yes
Wireless radioYes
VPN tunnels quantity16
VPN supportOpenVPN, PPTP VPN, IPSec VPN
DSL features
ADSLYes
ADSL2Yes
ADSL2+Yes
VDSL2Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity1
RJ-11 ports quantity2
DC-in jackYes
Management features
Quality of Service (QoS) supportYes
Reset buttonYes
WPS push buttonYes
MU-MIMO technologyYes
Security
NAT functionalityNAT Forwarding
Protocols
DHCP clientYes
DHCP serverYes
Supported network protocolsIPv4, IPv6
Design
Product typeTabletop router
Product colourWhite
Wall mountableYes
Indication lightYes
On/off switchYes
Antenna
Antenna designInternal
Power
Power source typeDC
Output voltage12 V
Output current2 A
External power adapterYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
System requirements
Windows operating systems supportedWindows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supportedYes
Mac operating systems supportedYes
Mac compatibilityYes
Weight & dimensions
Width199.7 mm
Depth148.6 mm
Height67.5 mm

In the box

  • Cables included: LAN (RJ-45), Phone (RJ-11)
  • AC adapter included: Yes
  • Quick installation guide: Yes
